Park / Neutral Position Switch: Components

Fig 1: Identifying Park / Neutral Position Switch Replacement Components And Torque Specifications (1 Of 2)
G05268698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

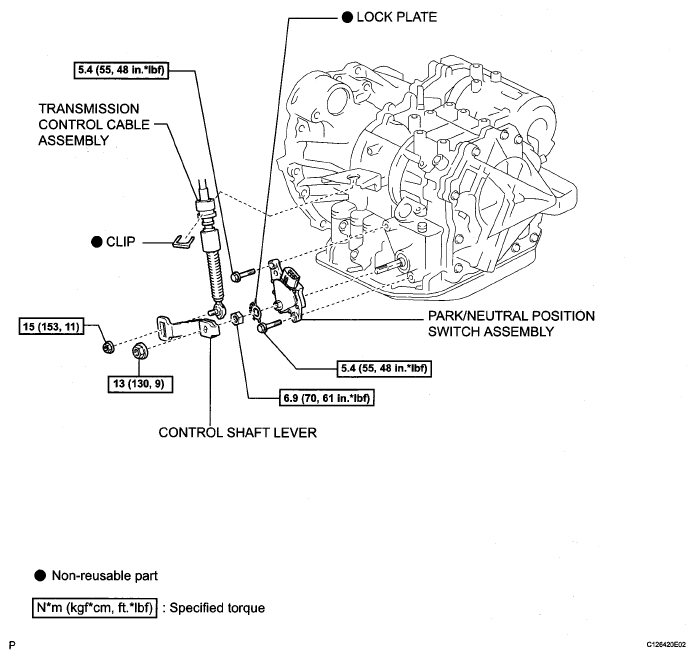

Fig 2: Park / Neutral Position Switch Replacement Components With Torque Specifications (2 Of 2)
G05268699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
