Home >> Lexus >> 2008 >> RX 350 FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> U151E Automatic Transaxle >> Forward Clutch >> Components

Forward Clutch: Components

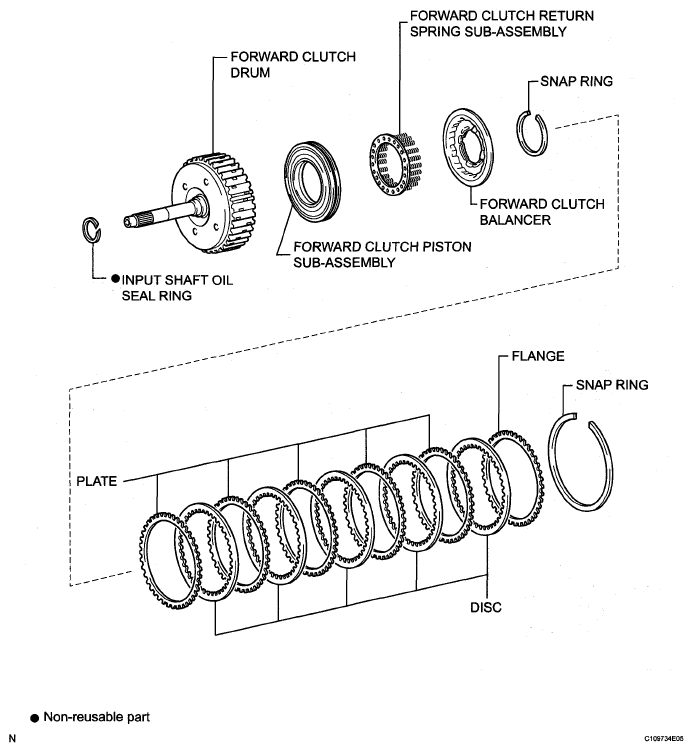

Fig 1: Identifying Forward Clutch Components

G05269148

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
