UNDERDRIVE Planetary Gear: Components

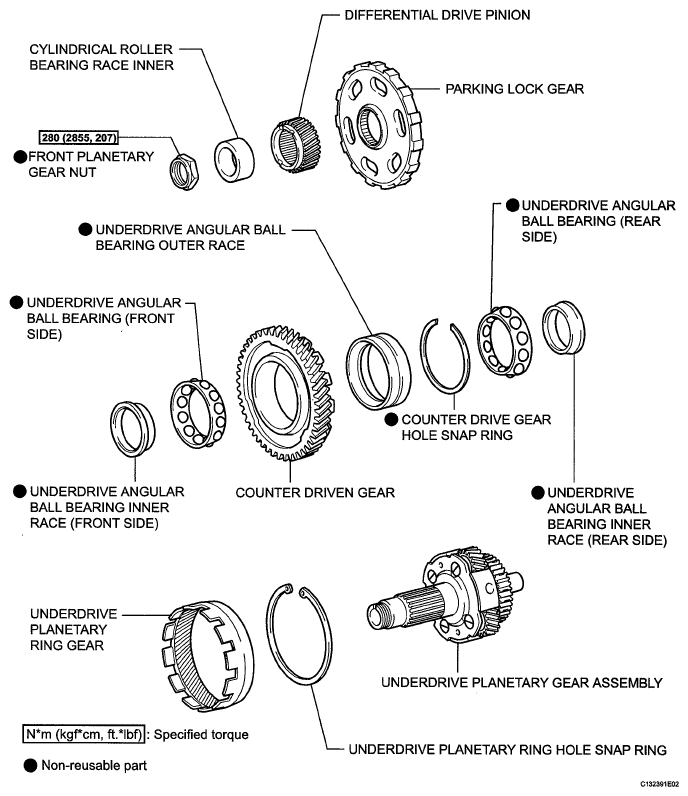

Fig 1: Identifying Underdrive Planetary Gear Components

G05416087

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
