Lexus
>>
2008
>>
RX 350 AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
U151F Automatic Transaxle
>>
Automatic Transaxle System
>>
Transmission Control Switch Circuit
>>
Wiring Diagram
Transmission Control Switch Circuit: Wiring Diagram

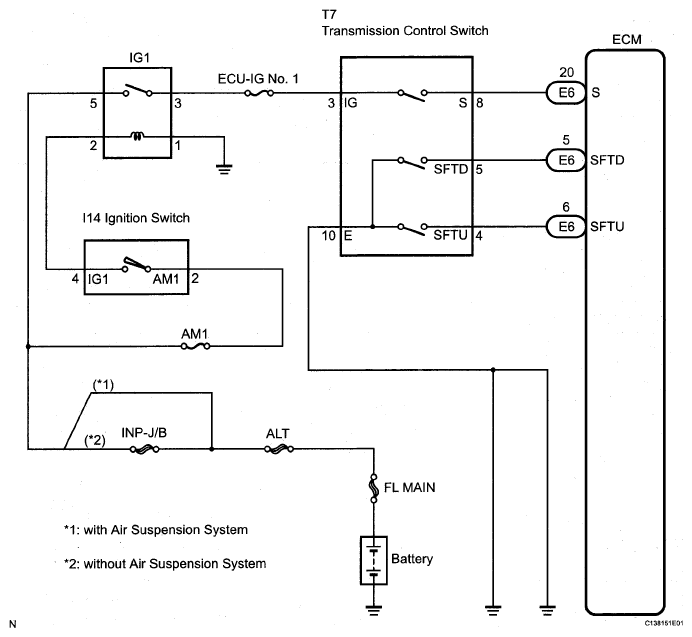

Fig 1: Transmission Control Switch Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
