Parts Location

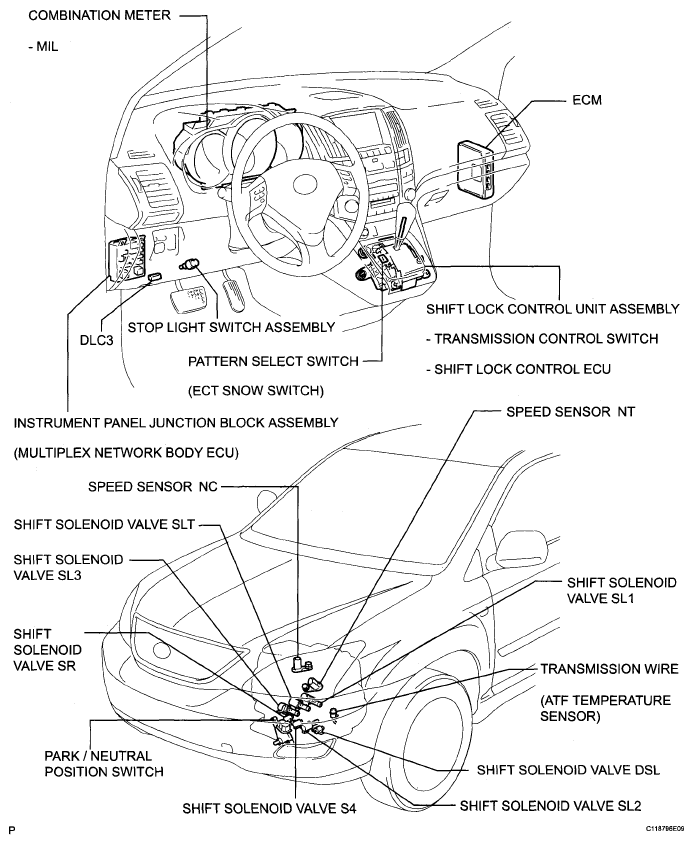

Fig 1: Identifying Automatic Transaxle System Parts Location

G05841118

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
