SHORT PIN INSTALLATION DURING PDS

TECHNICAL SERVICE BULLETIN

Reference Number(s): PD076-06, Date of Issue: December 14, 2006

LEXUS:	2008 RX 350
Section:	PRE-DELIVERY SERVICE
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Introduction

To minimize battery discharge during transportation and storage, the Short Pin has been removed at the assembly plant and temporarily stored in the engine compartment Junction Block. Reinstall the Short Pin into its original location and confirm all related DTCs are cleared during Pre-Delivery Service (PDS).

Applicable Vehicles

2008 model year RX 350 vehicles.

Required SSTs

REQUIRED SSTS

ITEM NO.

SPECIAL SERVICE TOOLS (SSTs)

PART NUMBER

QTY

DRW⁽²⁾

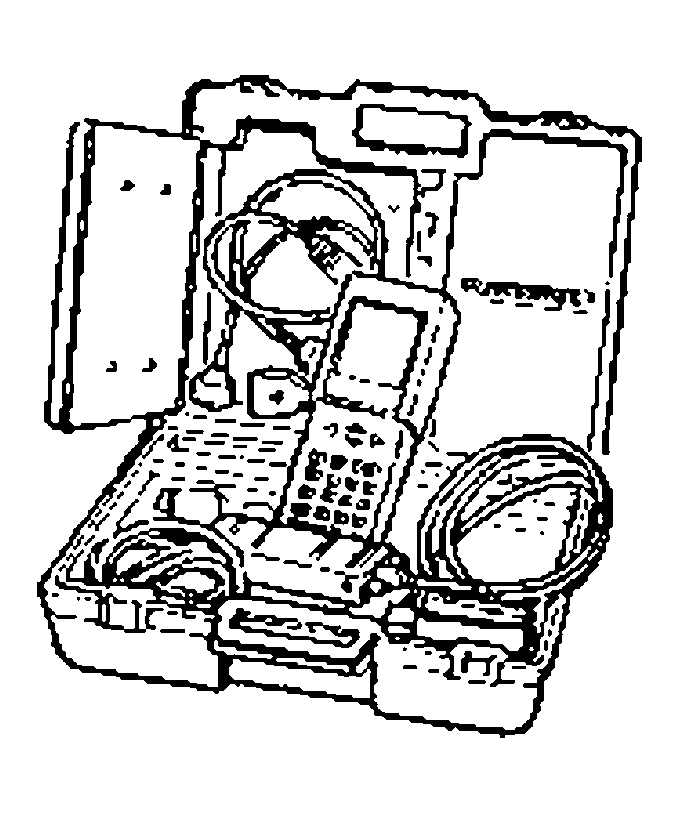

Lexus Diagnostic Tester Kit ⁽¹⁾

NOTE:

All components from this kit/set are required.
12 Megabyte Diagnostic Tester Program Card (P/N 01002593-005) with version 14.0a Software (or later) is required.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

LEX220036

CAN Interface Module Kit ⁽¹⁾

NOTE:

All components from this kit/set are required.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

01002744

⁽¹⁾	Essential SSTs.

⁽²⁾	Drawer number in SST Storage System.

NOTE: Additional Diagnostic Tester Kits, CAN Interface Modules, Program Cards, or other SSTs may be ordered by calling SPX/OTC at 1-800-933-8335.

Warranty Information

WARRANTY INFORMATION

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
NA	Not Applicable to Warranty	-	-	-	-

Installation Procedure

The removed Short Pin is stored in the blank space of the Junction Block in the engine compartment.

Install the Short Pin into its original location in the Junction Block as shown.

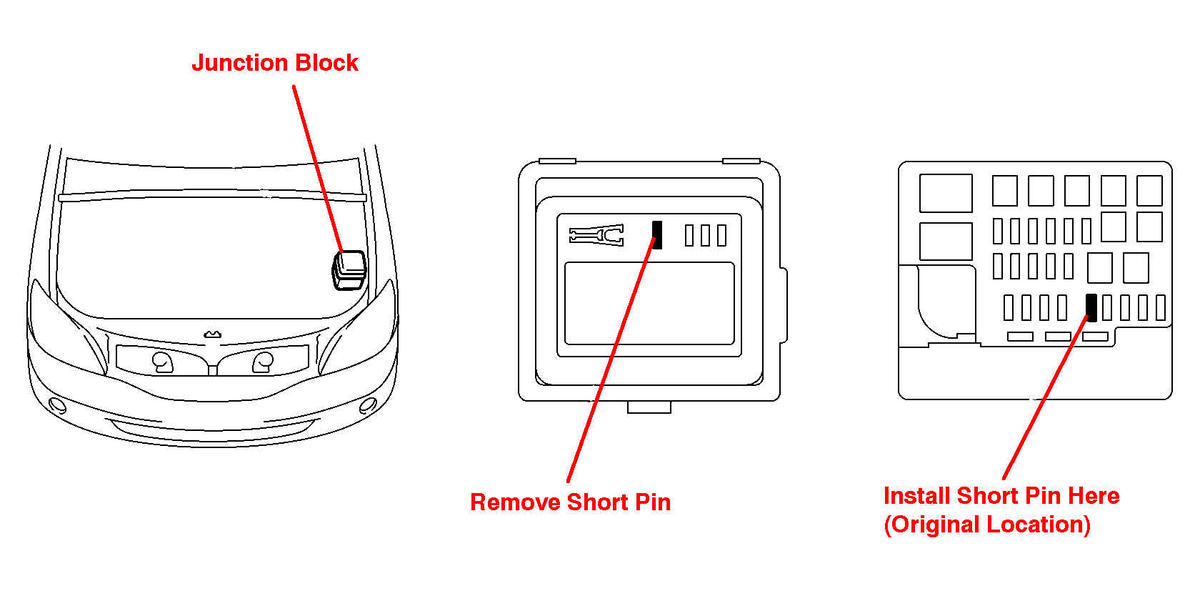

Fig 1: Identifying Short Pin Locations

NOTE:

The Short Pin does NOT function as a fuse, so install it only in the position shown.
If the vehicle is stored at the dealership after PDS, disconnect the negative (-) battery terminal to prevent battery discharge.
If the battery is disconnected, systems requiring initialization may need to be re-initialized.

DTC Clearing Procedure

With the Short Pin removed, the occupant classification ECU and Center Airbag Sensor Assembly (airbag ECU) may detect the interruption in battery voltage (B+) and store a DTC. Clear DTC B1150 and B1794 after installing the Short Pin.

Connect the Diagnostic Tester to the DLC3.
Turn the ignition switch to the "IG-ON" position.
Using the Diagnostic Tester, check any codes being output.
HINT:

If any DTCs besides DTC B1150 and B1794 remain, repair the applicable system according to the Repair Manual.

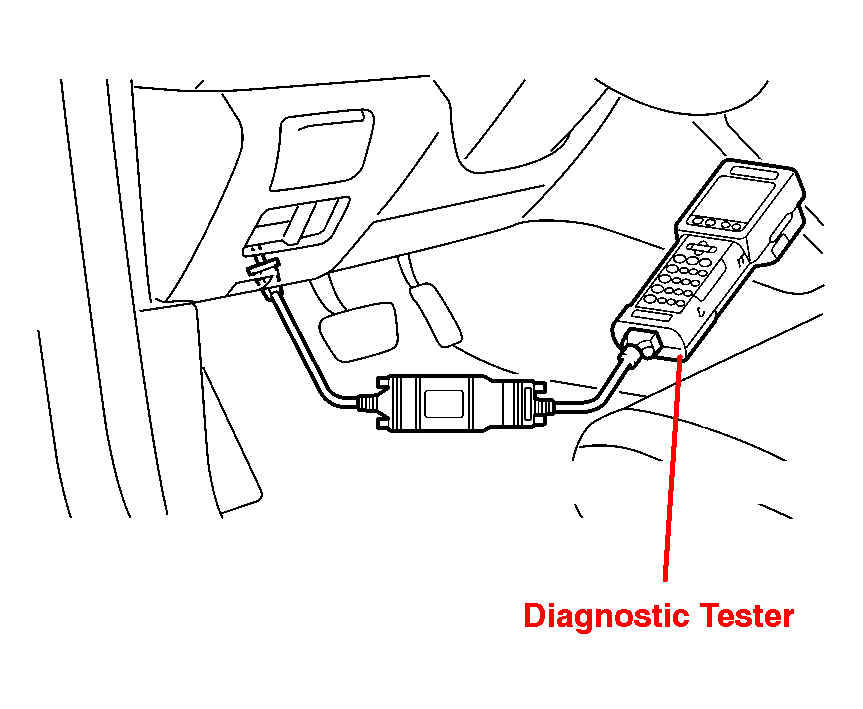

Fig 2: Connecting Diagnostic Tester To DLC3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Erase DTC (B1150 and B1794) and Freeze Frame Data.
