Parts Location

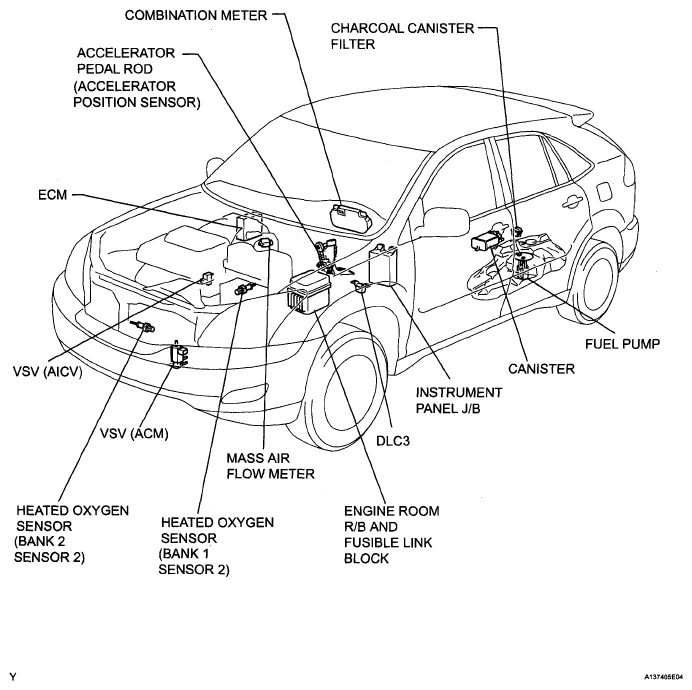

Fig 1: Identifying SFI System Components Location (1 Of 3)
G05839955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

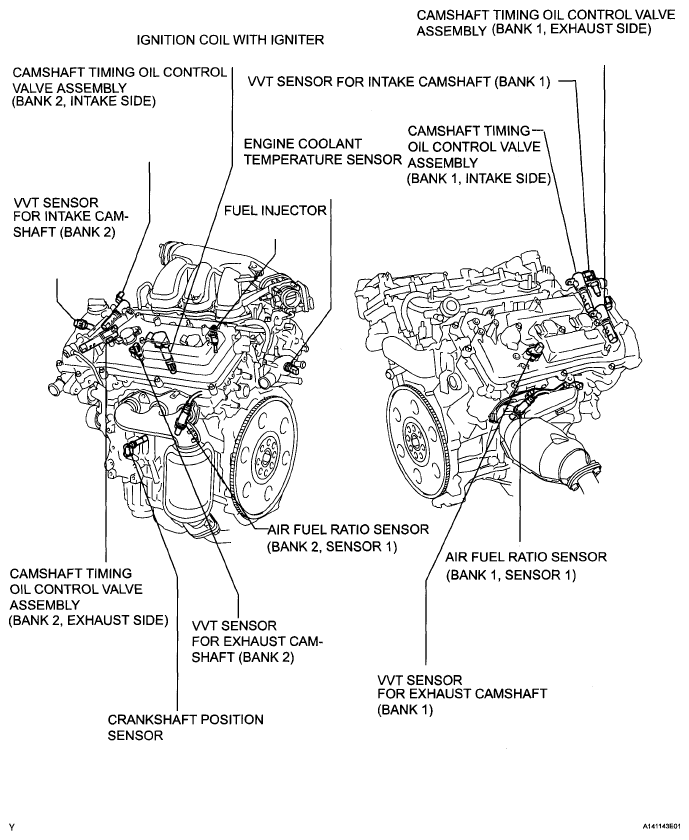

Fig 2: Identifying SFI System Components Location (2 Of 3)
G05839956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

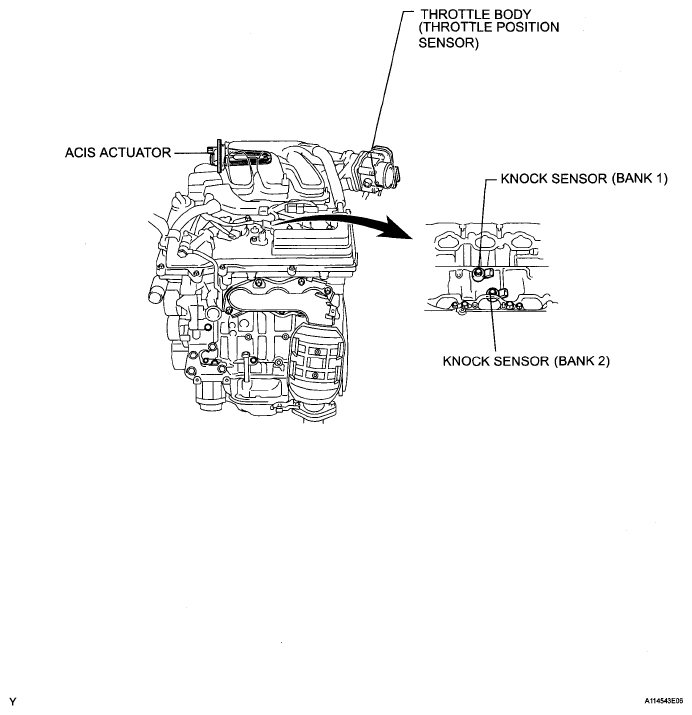

Fig 3: Identifying SFI System Components Location (3 Of 3)
G05839957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
