Throttle Body: Components

Fig 1: Windshield Wiper Assembly Replacement Components With Torque Specifications
G05840358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

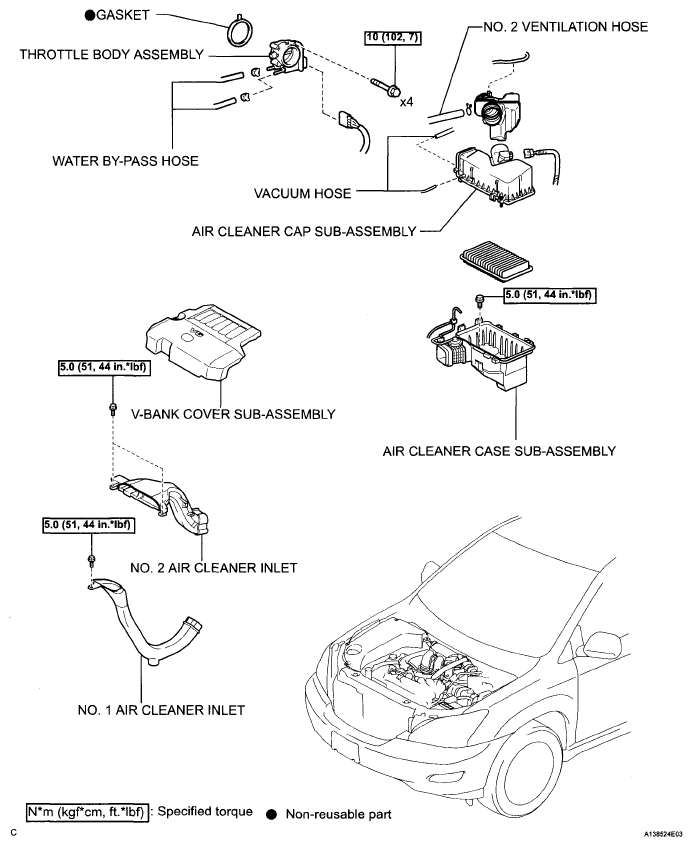

Fig 2: Throttle Body Replacement Components With Torque Specifications
G05840377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
