Knock Sensor: Components

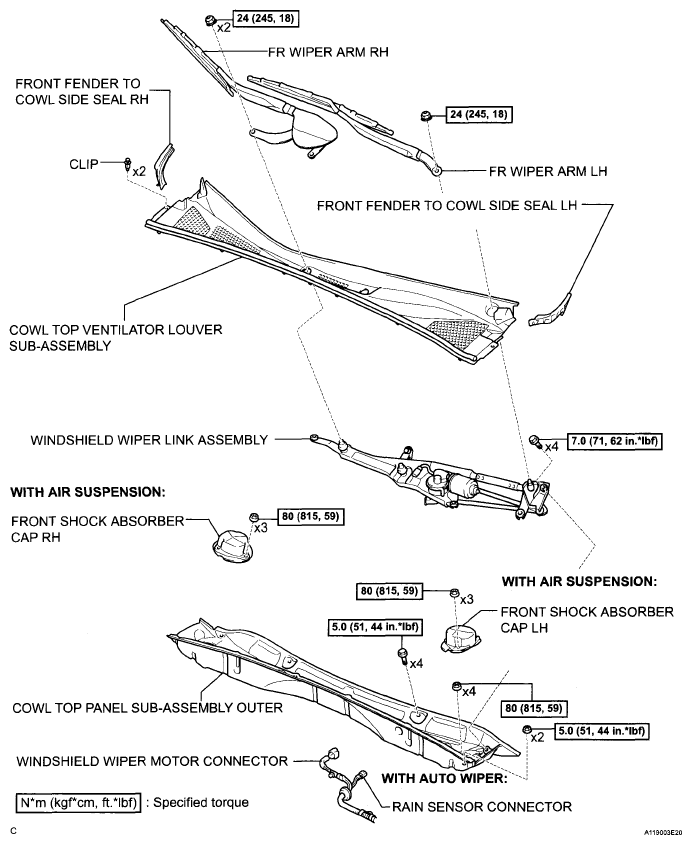

Fig 1: Windshield Wiper Assembly Replacement Components With Torque Specifications
G05840358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Air Cleaner Assembly Replacement Components With Torque Specifications
G05268269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Knock Sensor Replacement Components With Torque Specifications
G05268329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
