Air Intake Control Circuit: Wiring Diagram

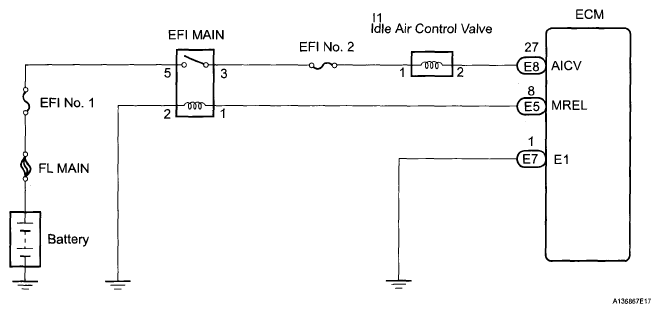

Fig 1: Air Intake Control - Wiring Diagram
G05840352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
