Active Control Engine Mount System: Wiring Diagram

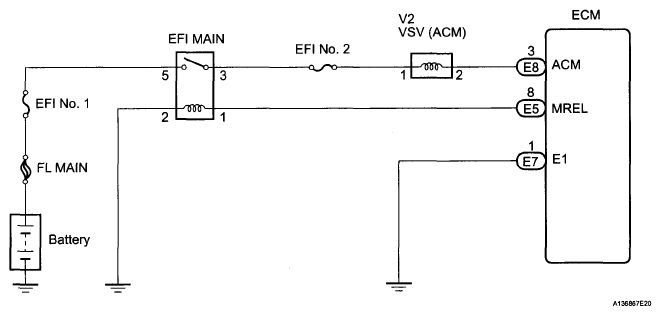

Fig 1: Active Control Engine Mount System - Wiring Diagram

G05840284

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
