Engine Room Relay Block

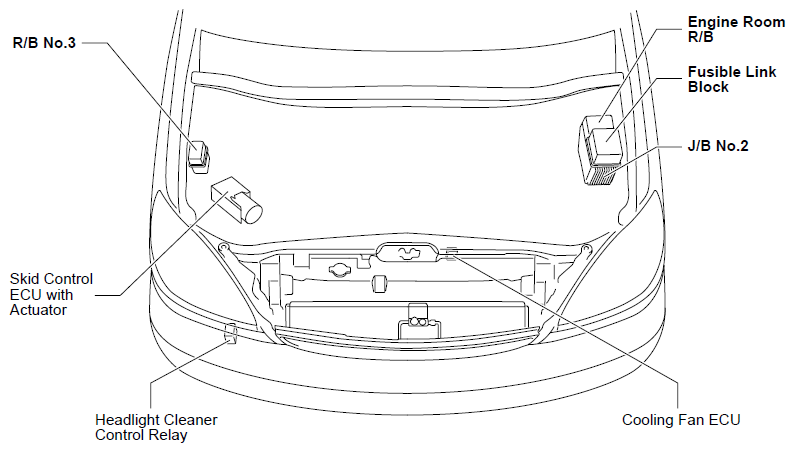

Engine Compartment Left  (See Figure)

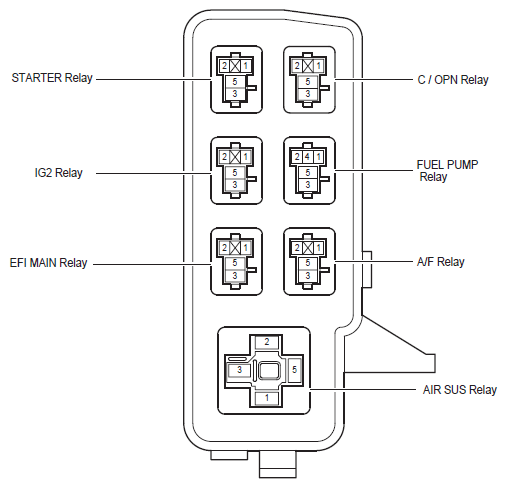

Fig 1: Engine Room R/B Relay Locations
G07602692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM R/B RELAY IDENTIFICATION

RELAY DESCRIPTION
EFI Main Relay
IG2 Relay
Starter Relay
C/OPN Relay
Fuel Pump Relay
A/F Relay
Air SUS Relay
