Ground Point: Notes

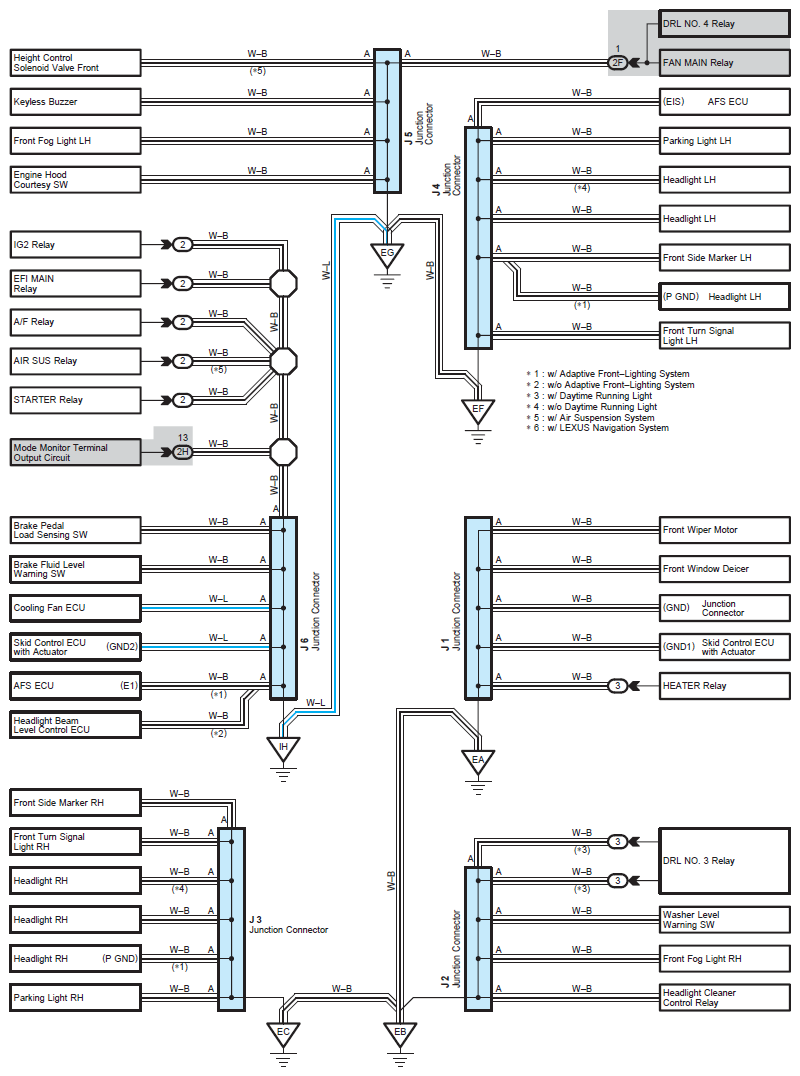

Fig 1: Ground Point - Circuit Diagram (1 Of 5)
G07602985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

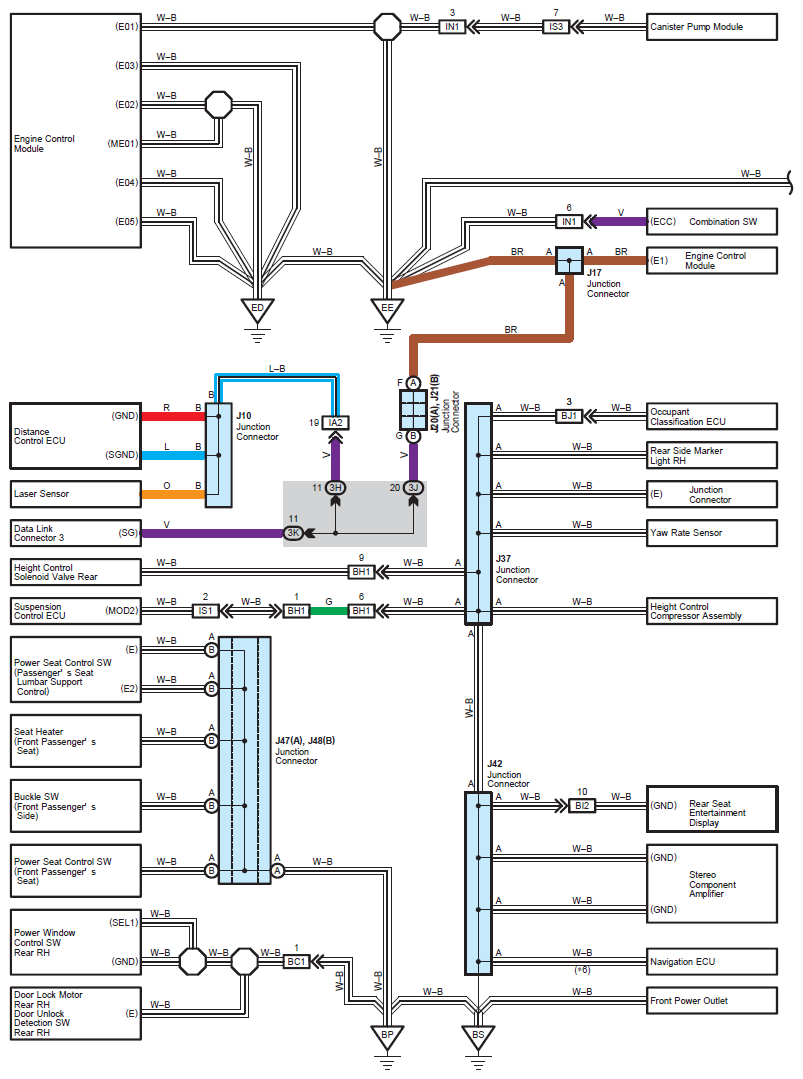

Fig 2: Ground Point - Circuit Diagram (2 Of 5)
G07602986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

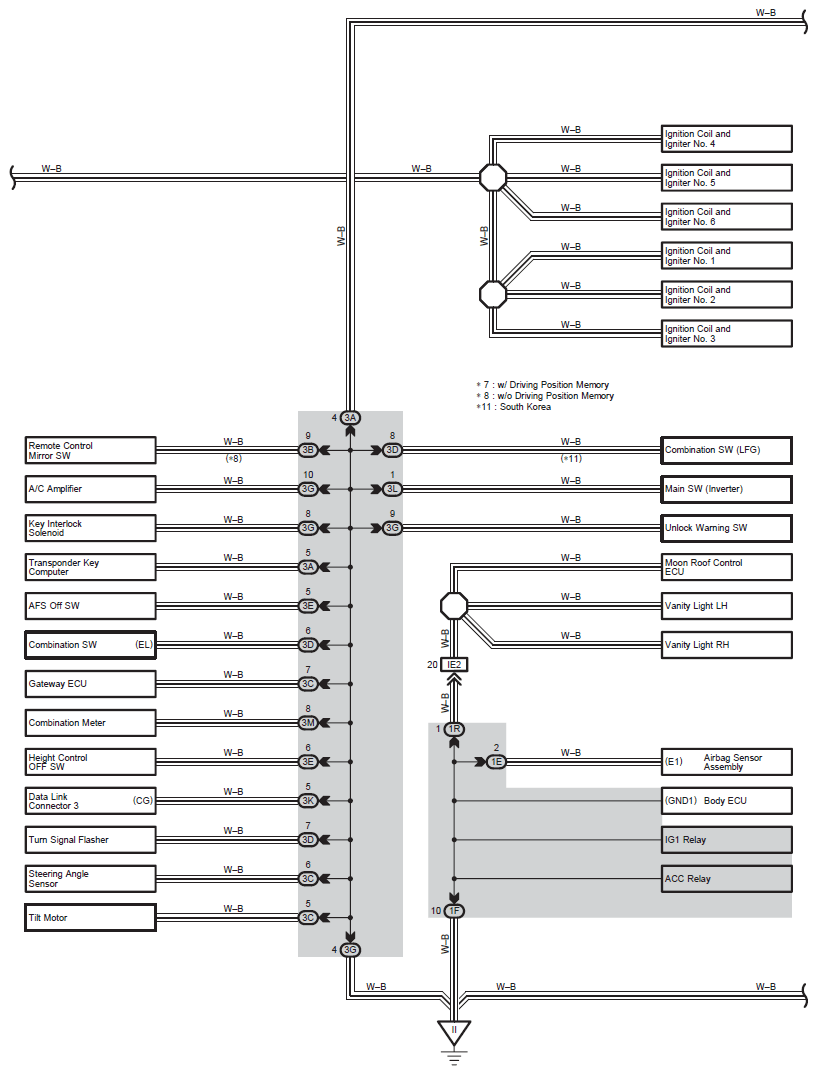

Fig 3: Ground Point - Circuit Diagram (3 Of 5)
G07602987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

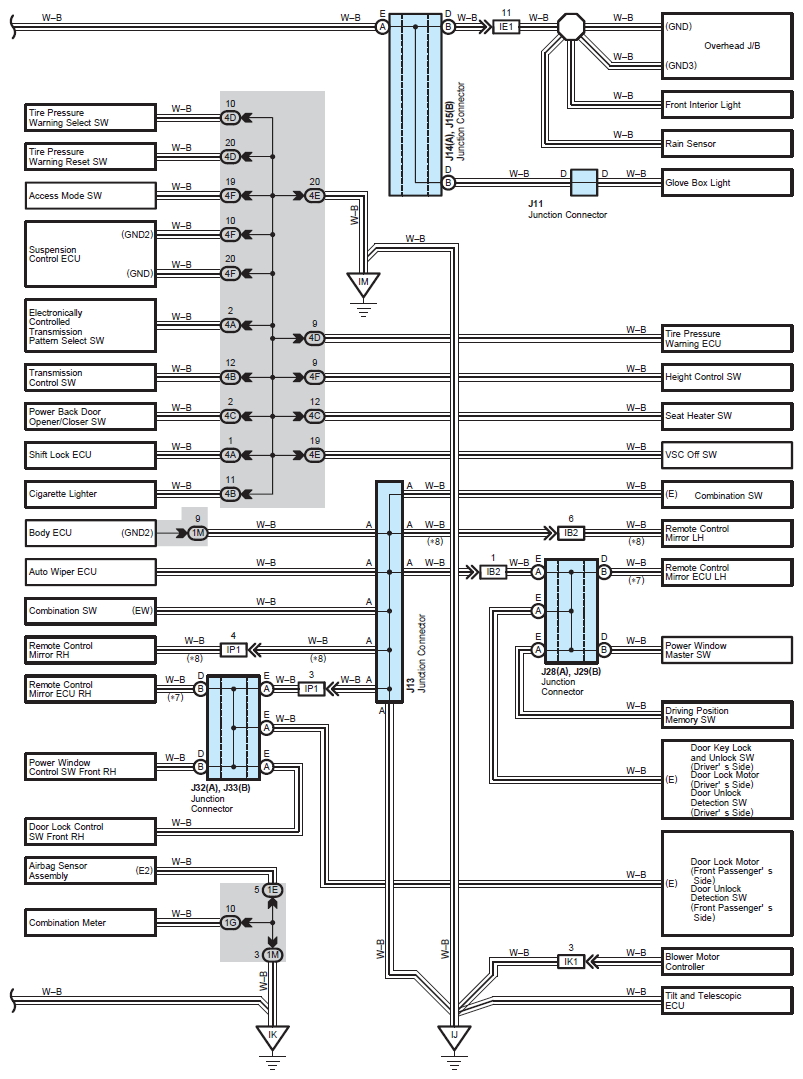

Fig 4: Ground Point - Circuit Diagram (4 Of 5)
G07602988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

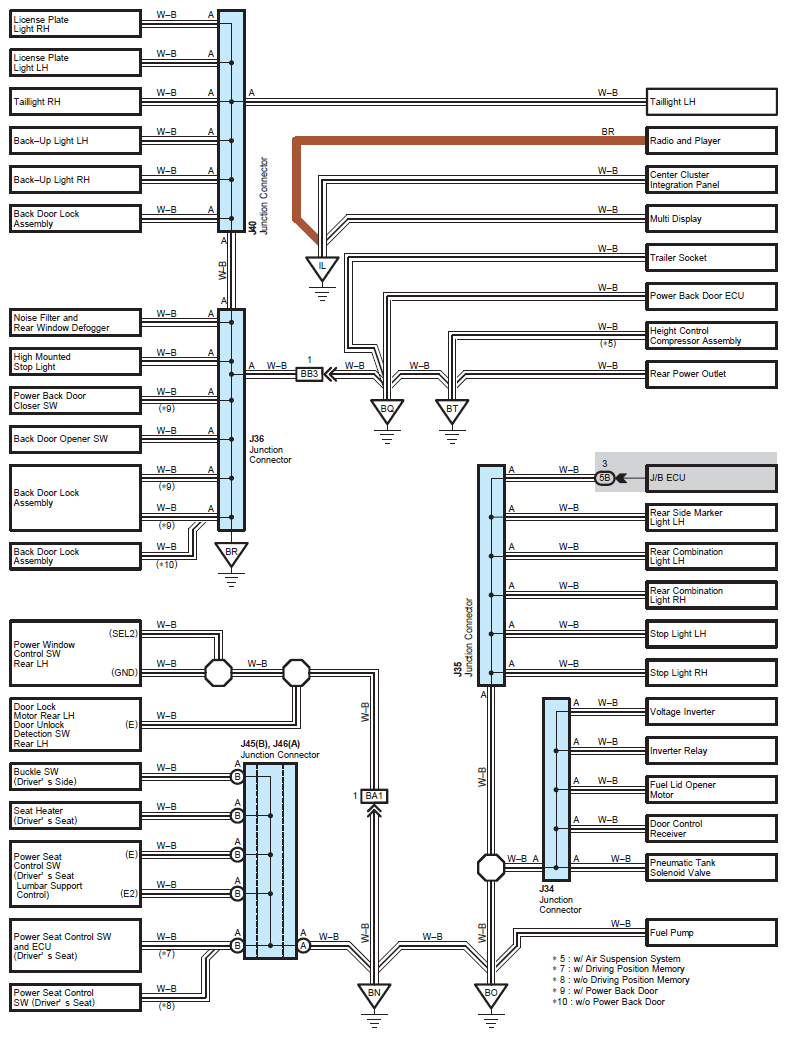

Fig 5: Ground Point - Circuit Diagram (5 Of 5)
G07602989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
