Skid Control Buzzer Circuit: Wiring Diagram

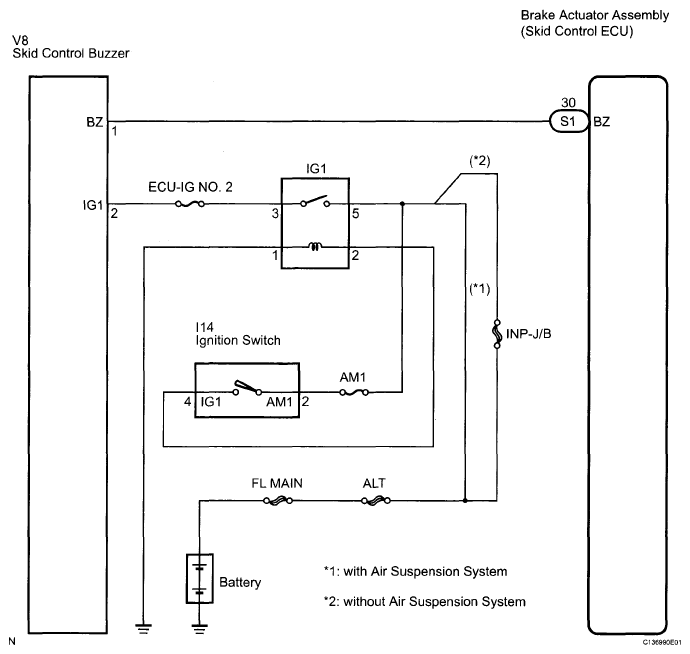

Fig 1: Brake Actuator Assembly And Skid Control Buzzer - Wiring Diagram

G05841948

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
