Parts Location

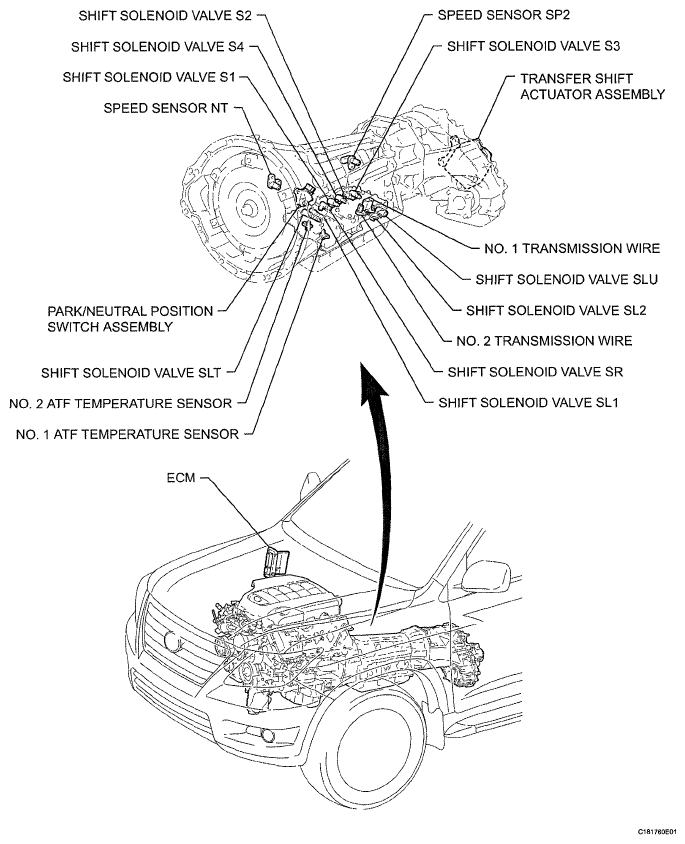

Fig 1: Identifying Automatic Transmission System Components (1 Of 2)
G05760454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

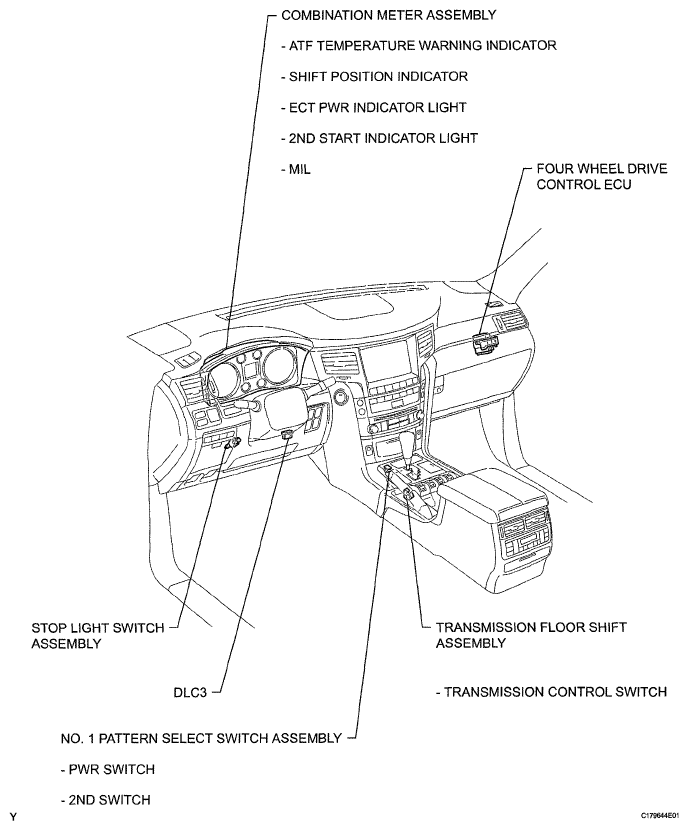

Fig 2: Identifying Automatic Transmission System Components (2 Of 2)
G05760455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
