Power Source Circuit: Wiring Diagram

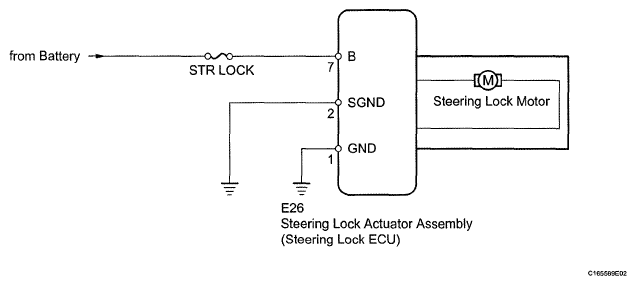

Fig 1: Power Source Wiring Diagram

G05762595

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
