Home >> Lexus >> 2008 >> LX 570 >> Repair and Diagnosis >> Steering >> Power Steering >> Variable Gear Ratio Steering System >> Steering Actuator >> Components

Steering Actuator: Components

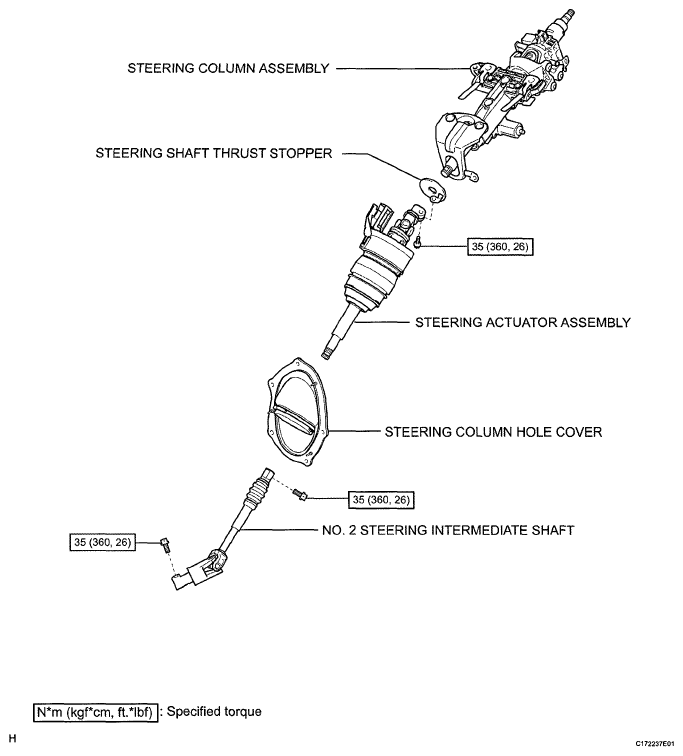

Fig 1: Steering Actuator Replacement Components With Torque Specifications

G05762031

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
