Spiral Cable: Components

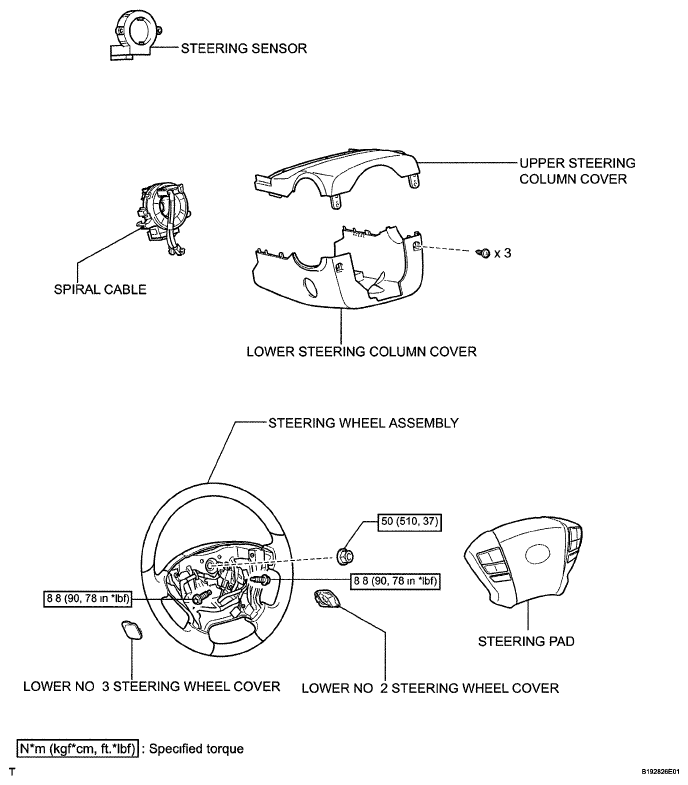

Fig 1: Spiral Cable Replacement Components With Torque Specifications

G05764311

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
