Seat Position Sensor: Removal

REMOVE FRONT SEAT ASSEMBLY LH
1. Remove the front seat assembly LH (See REMOVAL ).
REMOVE SEAT POSITION SENSOR
1. Using a T30 "TORX" socket wrench, remove the screw and seat position sensor with sensor protector.
2. Disconnect the connector

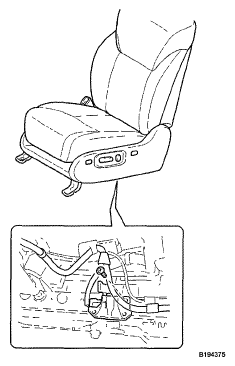

  Fig 1: Identifying Seat Position Sensor With Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the seat slide position sensor protector from the seat position sensor.
REMOVE FRONT SEAT ASSEMBLY RH
HINT:

Use the same procedures described for the LH side.

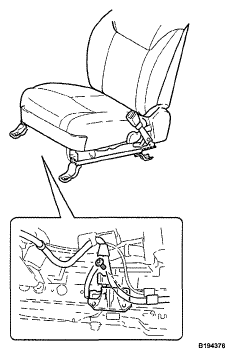

Fig 2: Identifying Seat Slide Position Sensor Protector From Seat Position Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEAT POSITION SENSOR
1. Using a T30 "TORX" socket wrench, remove the screw and seat position sensor with sensor protector.
2. Disconnect the connector.

  Fig 3: Identifying Seat Position Sensor With Sensor Protector And Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the seat slide position sensor protector from the seat position sensor.
Fig 4: Identifying Seat Slide Position Sensor Protector From Seat Position Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
