Seat Position Sensor: Components

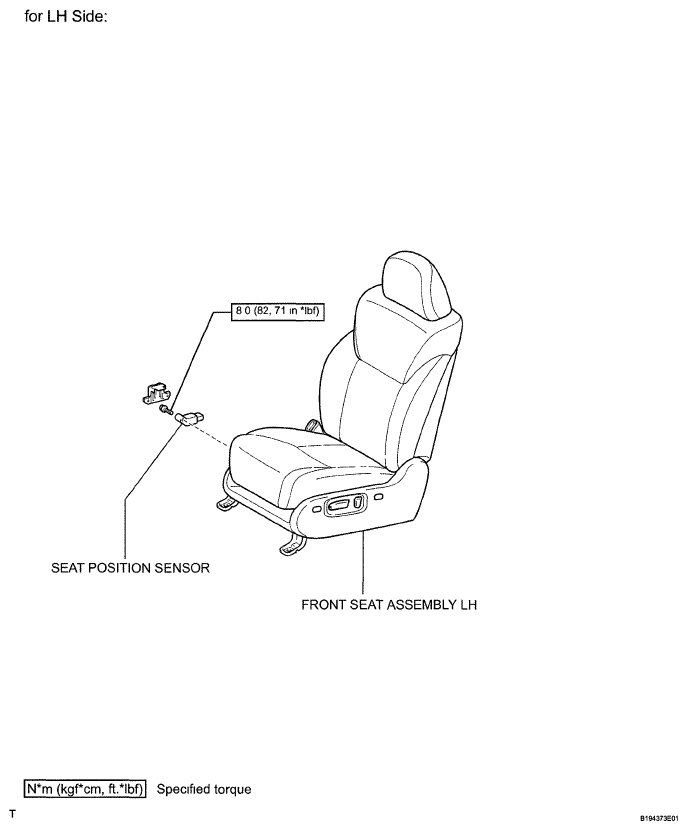

Fig 1: Seat Position Sensor Replacement Components With Torque Specifications (For LH Side)
G05764438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

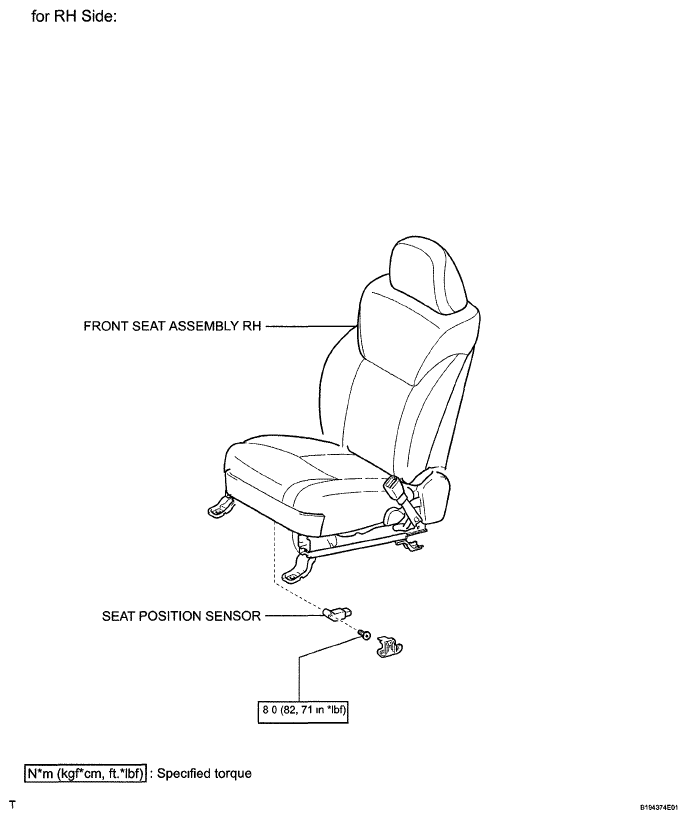

Fig 2: Seat Position Sensor Replacement Components With Torque Specifications (For RH Side)
G05764439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
