Rear Airbag Sensor: Components

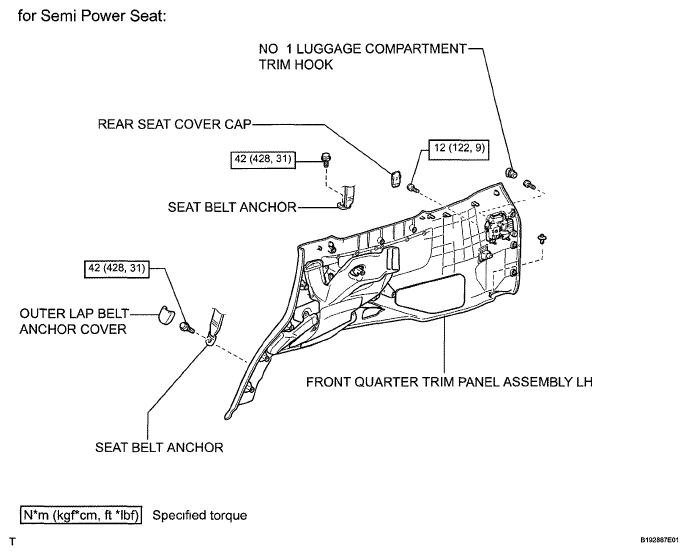

Fig 1: Rear Airbag Sensor Replacement Components With Torque Specifications (For Semi Power Seat)
G05764428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

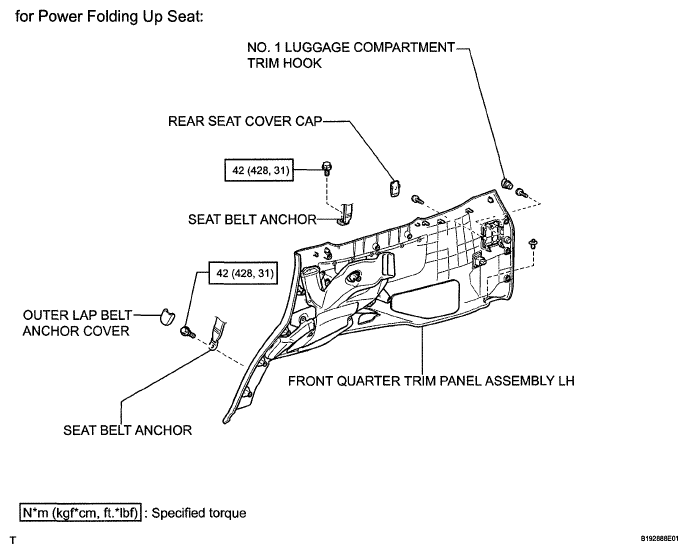

Fig 2: Rear Airbag Sensor Replacement Components With Torque Specifications - For Power Folding Up Seat (1 Of 2)
G05764429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

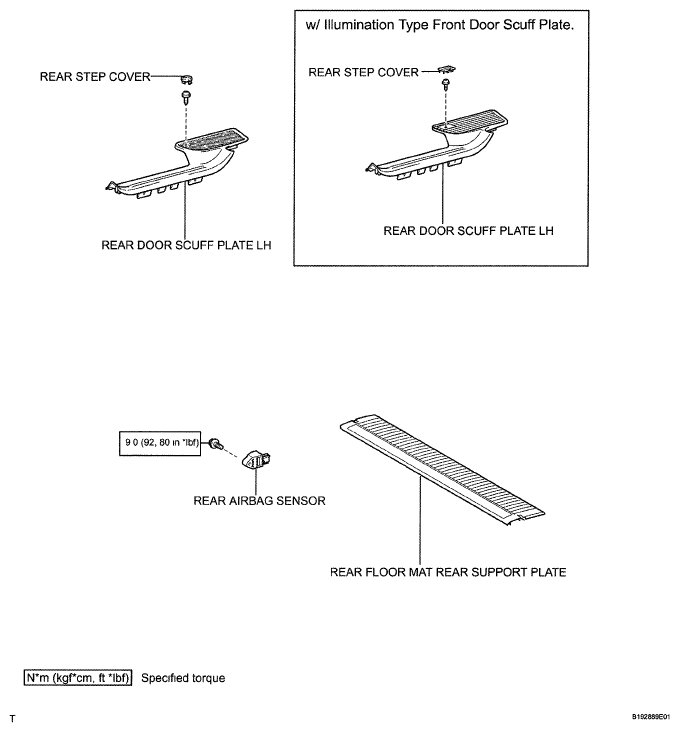

Fig 3: Rear Airbag Sensor Replacement Components With Torque Specifications - For Power Folding Up Seat (2 Of 2)
G05764430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
