Front Seat Cushion Assembly: Components

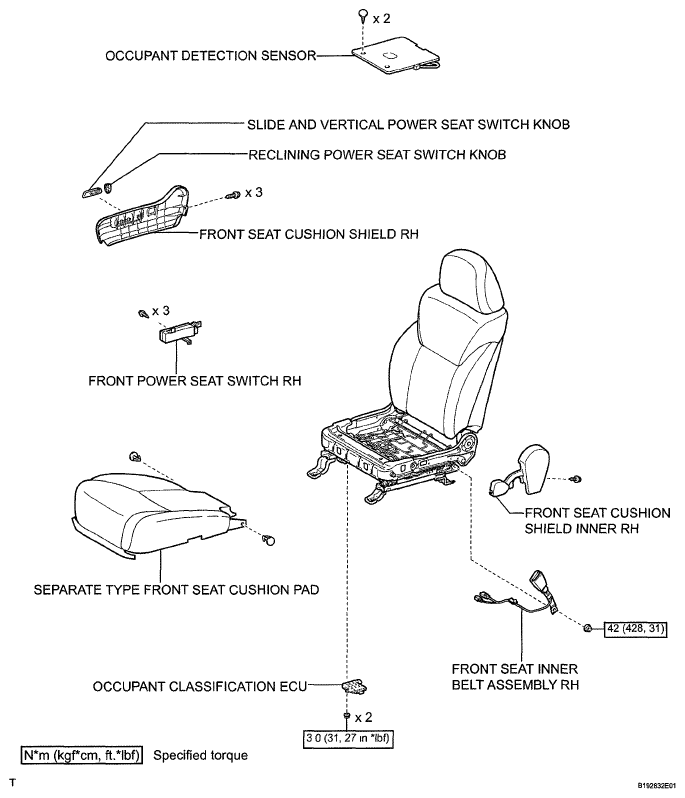

Fig 1: Front Seat Cushion Assembly Replacement Components With Torque Specifications

G05764446

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
