Fuel Pump Control Circuit: Wiring Diagram

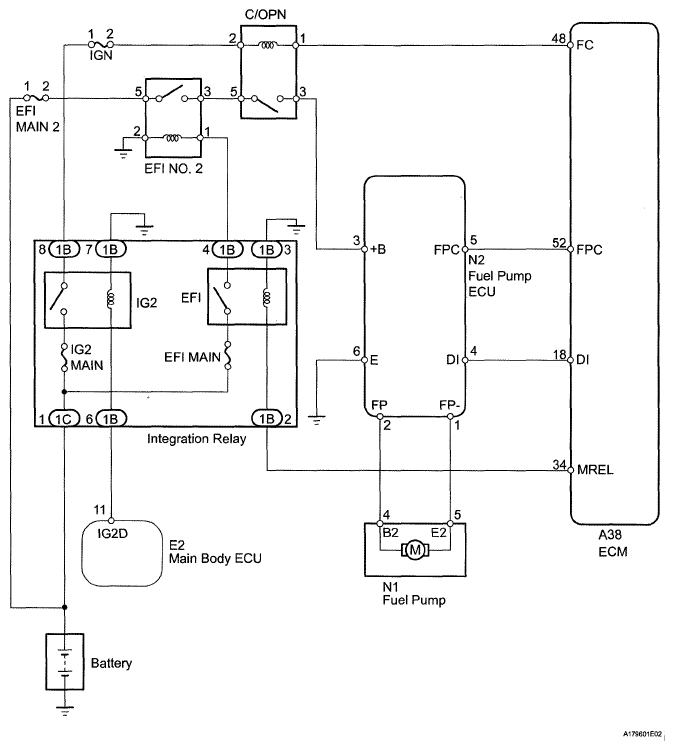

Fig 1: Fuel Pump Control - Wiring Diagram

G05627919

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
