Fuel Injector Circuit: Wiring Diagram

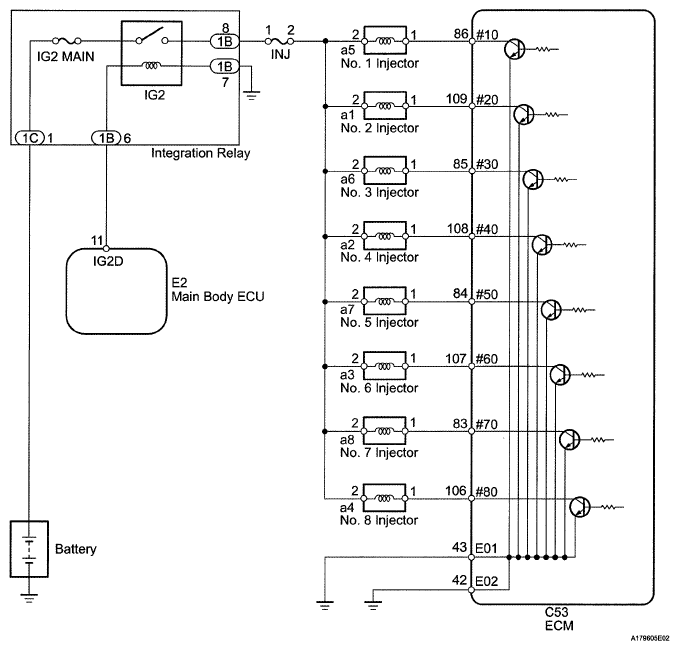

Fig 1: Fuel Injector - Wiring Diagram

G05627930

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
