Cranking Holding Function Circuit: Wiring Diagram

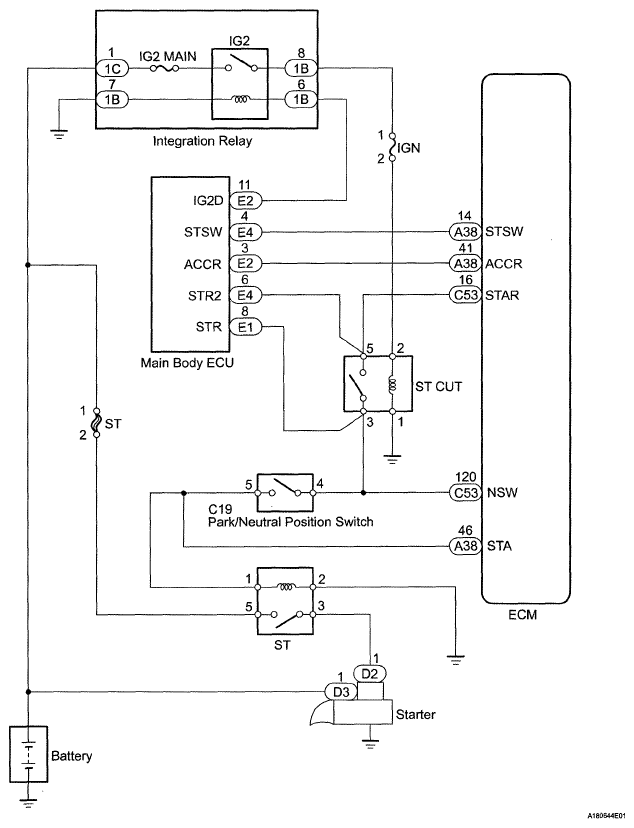

Fig 1: Cranking Holding Control System - Wiring Diagram

G05628039

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
