Exhaust Manifold: Components

Fig 1: Exhaust Manifold Replacement Components With Torque Specifications (1 Of 3)
G05759804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exhaust Manifold Replacement Components With Torque Specifications (2 Of 3)
G05759805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

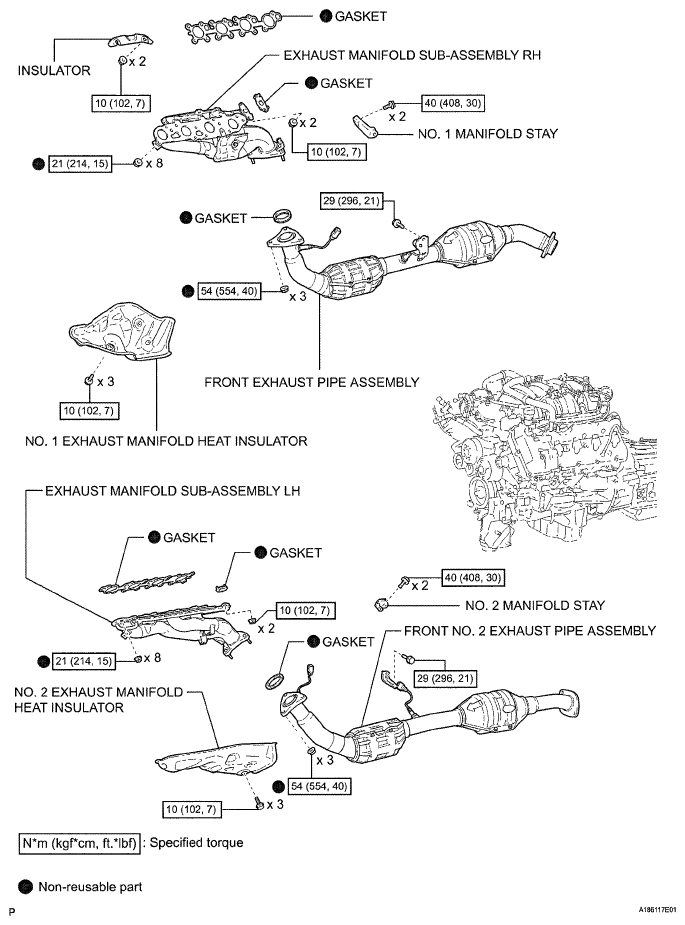

Fig 3: Exhaust Manifold Replacement Components With Torque Specifications (3 Of 3)
G05759806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
