Water Pump: Components

Fig 1: Water Pump Replacement Components With Torque Specifications (1 Of 3)
G05759850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

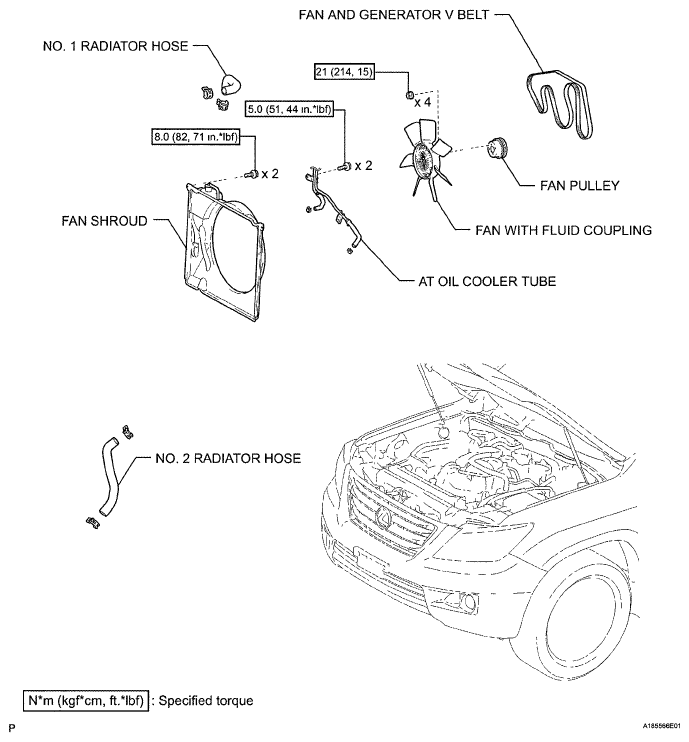

Fig 2: Water Pump Replacement Components With Torque Specifications (2 Of 3)
G05759851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

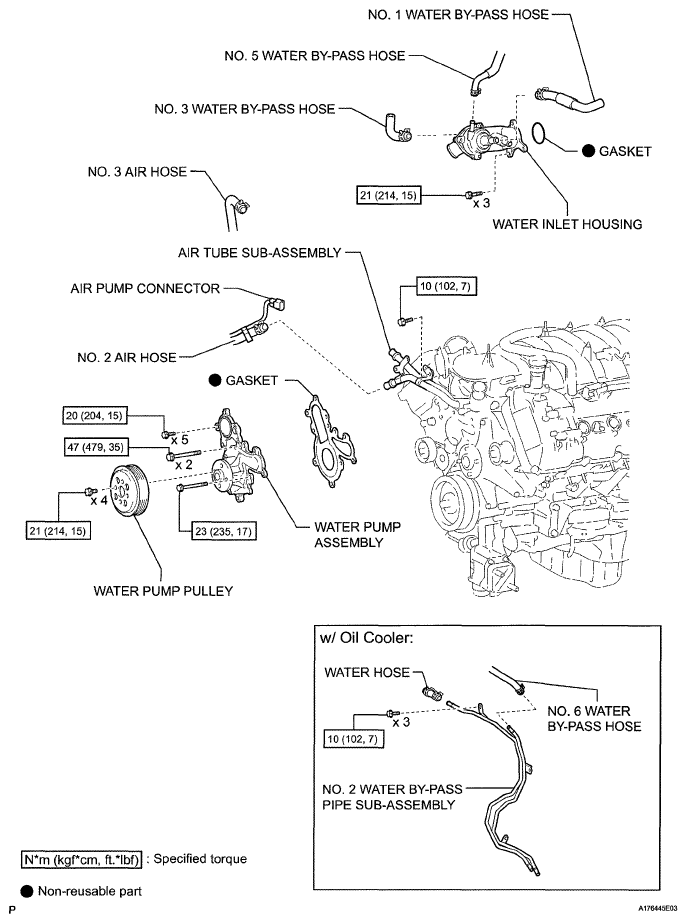

Fig 3: Water Pump Replacement Components With Torque Specifications (3 Of 3)
G05759852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
