Air Switching Valve: Components

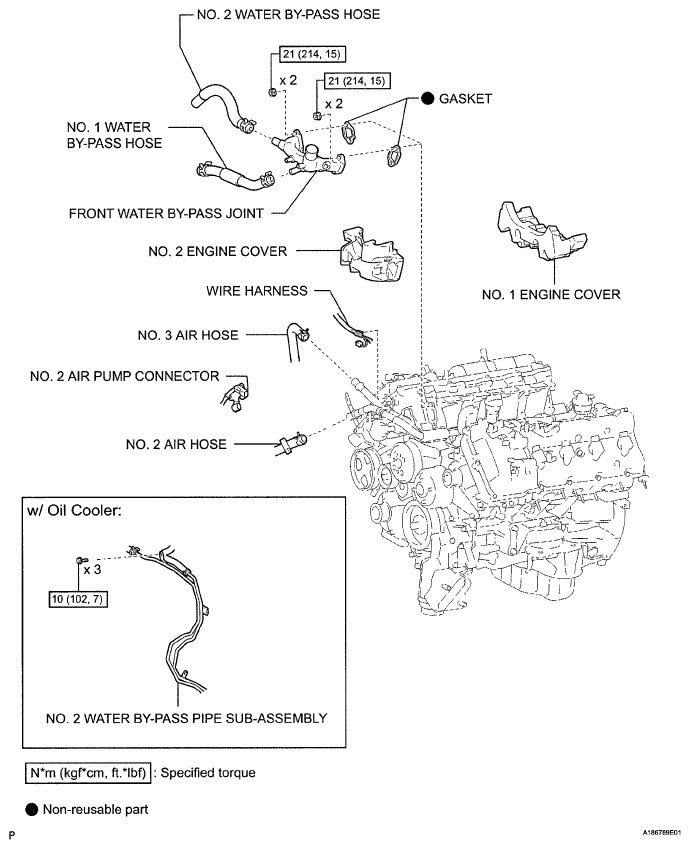

Fig 1: Air Switching Valve Replacement Components With Torque Specifications (1 Of 2)
G05759683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

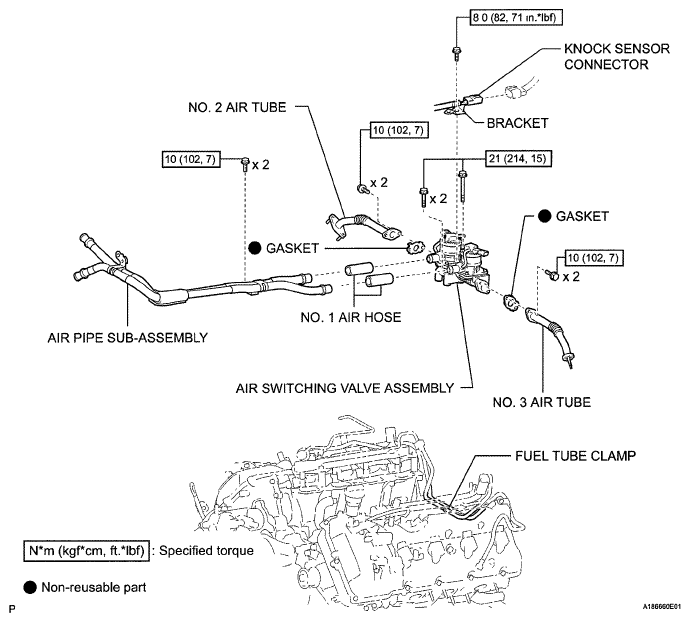

Fig 2: Air Switching Valve Replacement Components With Torque Specifications (2 Of 2)
G05759684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
