| Combination meter assembly |
|
Vehicle speed signal |
Direct Line |
|
|
Rheostat duty signal |
CAN |
|
|
Vehicle specification signal (Destination/Handle code) |
Display and navigation module display
Multi-display |
Front passenger side seat belt warning light signal |
CAN |
| ECM |
Combination meter assembly |
- ECT PWR indicator light signal
- CRUISE main indicator light signal
- Engine coolant temperature signal
- ATF temperature signal
- Current gear position signal
- Fuel injection information signal
- Engine speed data
- CHARGE indicator light signal
|
CAN |
| MIL signal |
Direct Line |
| Center airbag sensor |
Combination meter assembly |
- Passenger side seat belt buckle switch signal
- SRS warning light signal
- Diagnosis signal
|
CAN |
| Four wheel drive control ECU |
Combination meter assembly |
- 4LO indicator light signal
- Center differential lock indicator light signal
|
CAN |
| Skid control ECU |
Combination meter assembly |
- ABS warning light signal
- Slip indicator light signal
- Vehicle speed signal
- Brake warning light signal
- CRAWL indicator light signal
|
CAN |
| Main body ECU |
Combination meter assembly |
- Driver side seat belt buckle switch signal
- Courtesy light switch signal
- BEAM indicator light signal
- HEAD indicator light signal
- TAIL indicator light signal
- FRONT FOG indicator light signal
|
CAN |
| Tire pressure warning ECU |
Combination meter assembly |
Tire pressure warning light signal |
CAN |
| Seat belt control ECU |
Combination meter assembly |
PCS indicator light signal |
CAN |
| ECM |
Combination meter assembly |
- Shift position P signal
- Shift position R signal
- Shift position N signal
- Shift position D signal
- Shift position 6 signal
- Shift position 5 signal
- Shift position 4 signal
- Shift position 3 signal
- Shift position 2 signal
- Shift position 1 signal
- Sports mode enable signal
- Shift position signal
- Sports shift reject buzzer signal
|
CAN |
| Steering pad switch |
Combination meter assembly |
Steering pad switch operation signal |
Direct Line |
| Fuel sender gauge |
Combination meter assembly |
Fuel level signal |
Direct Line |
| Turn signal flasher assembly |
Combination meter assembly |
Turn signal indicator (LH/RH) signal |
Direct Line |
| Washer fluid level sensor |
Combination meter assembly |
Washer information signal |
Direct Line |
| Parking assist ECU |
Combination meter assembly |
- Clearance sonar indicator light signal
- Clearance sonar information signal
|
CAN |
| Suspension control ECU |
Combination meter assembly |
- Access mode indicator light signal
- 4-wheel AHC information signal
|
CAN |
| Headlight swivel ECU assembly |
Combination meter assembly |
AFS OFF indicator light signal |
CAN |
| Brake fluid level warning switch |
Combination meter assembly |
Brake fluid level warning light signal |
CAN |
| Oil level sensor |
Combination meter assembly |
Engine oil level signal |
CAN |
| Light control rheostat |
Combination meter assembly |
Illumination signal |
Direct Line |
| Generator |
Combination meter assembly |
CHARGE warning light signal |
Direct Line |

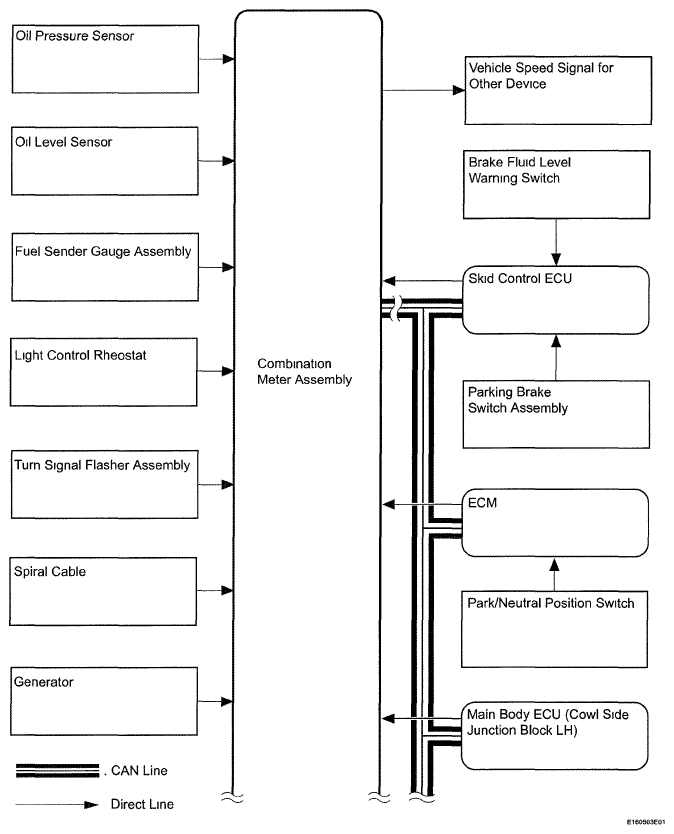

| Oil pressure sensor |
Combination meter assembly |
Oil pressure signal |
CAN |
| Air conditioning amplifier |
Combination meter assembly |
Outside temperature information signal |
CAN |

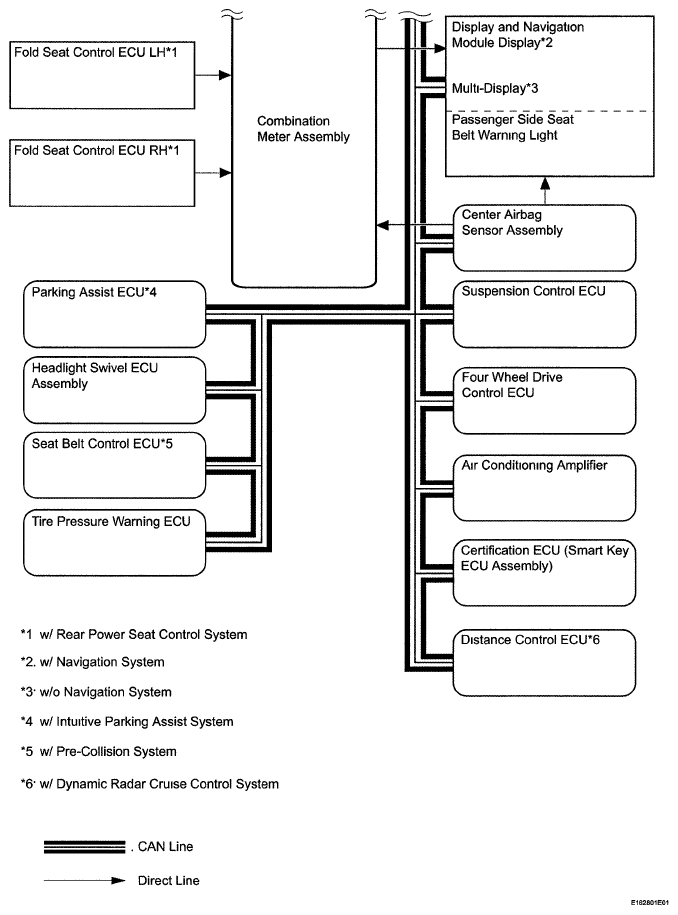

| Fold seat control ECU LH |
Combination meter assembly |
3rd seat information signal |
Direct Line |
| Fold seat control ECU RH |
Combination meter assembly |
3rd seat information signal |
Direct Line |
| Distance control ECU |
Combination meter assembly |
- Diagnosis signal
- Vehicle-to-vehicle distance control signal
- Vehicle-to-vehicle distance signal
- Front millimeter wave radar sensor grime signal
- Bad weather detection signal
- Approach warning signal
- Preceding vehicle detection signal
- Front millimeter wave radar sensor beam axis deviation signal
- Dynamic radar cruise warning signal
- Cruise control vehicle speed signal
- Constant speed cruise signal
- Radar sensor information signal
|
CAN |
| Certification ECU (Smart key ECU assembly) |
Combination meter assembly |
- Inside key existence warning signal
- Low key battery warning signal
- Shift position warning signal
- Meter buzzer request signal
- Door unlock mode display signal
- Steering lock warning signal
- Security warning light signal
|
CAN |
