Home >> Lexus >> 2008 >> LX 570 >> Repair and Diagnosis >> Electrical >> Body Electrical >> Power Outlets (Exterior) >> Towing Socket >> Components

Towing Socket: Components

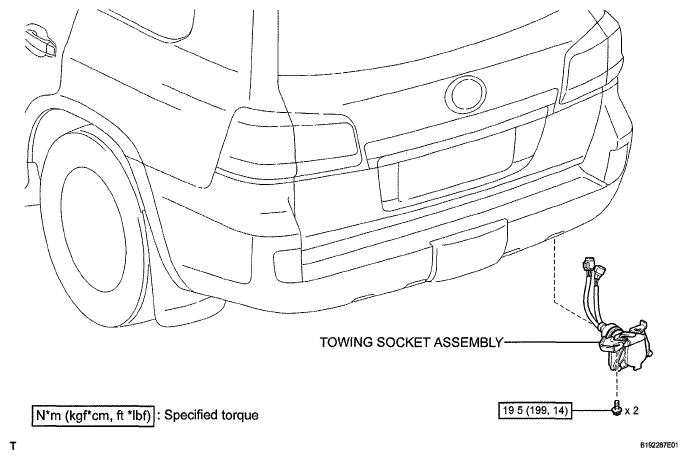

Fig 1: Towing Socket Replacement Components With Torque Specifications

G05768636

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
