Power Tilt and Power Telescopic: Notes

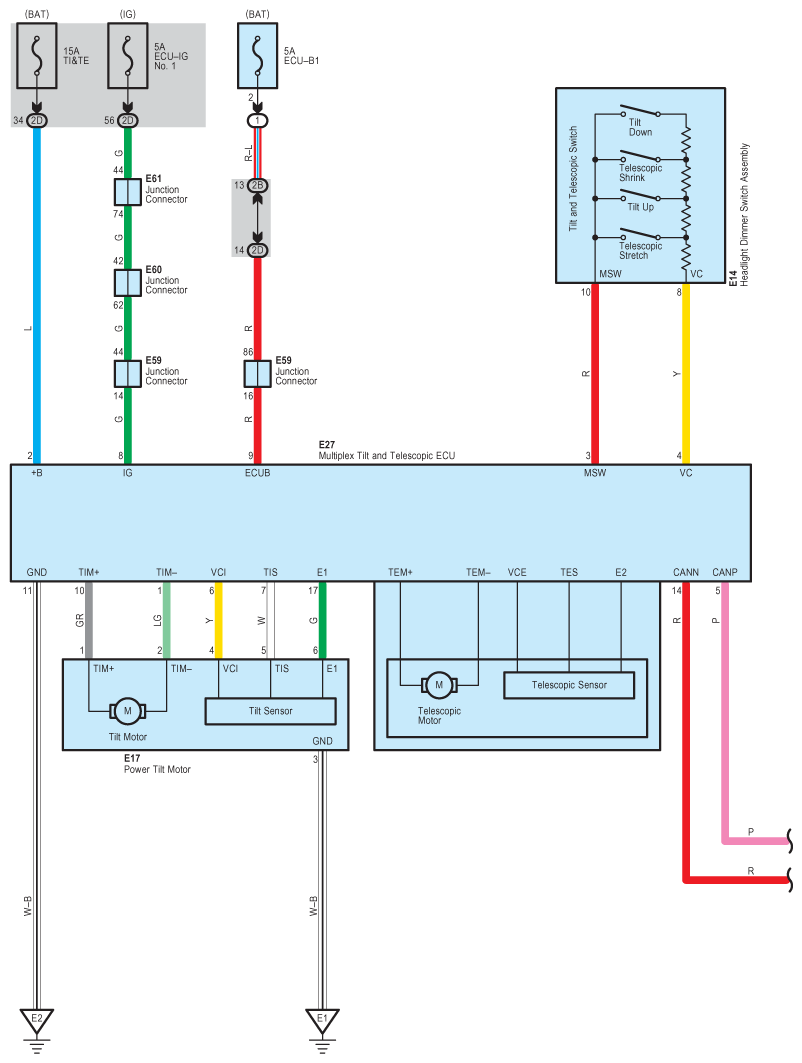

Fig 1: Power Tilt And Power Telescopic - Circuit Diagram (1 Of 3)
G07596955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

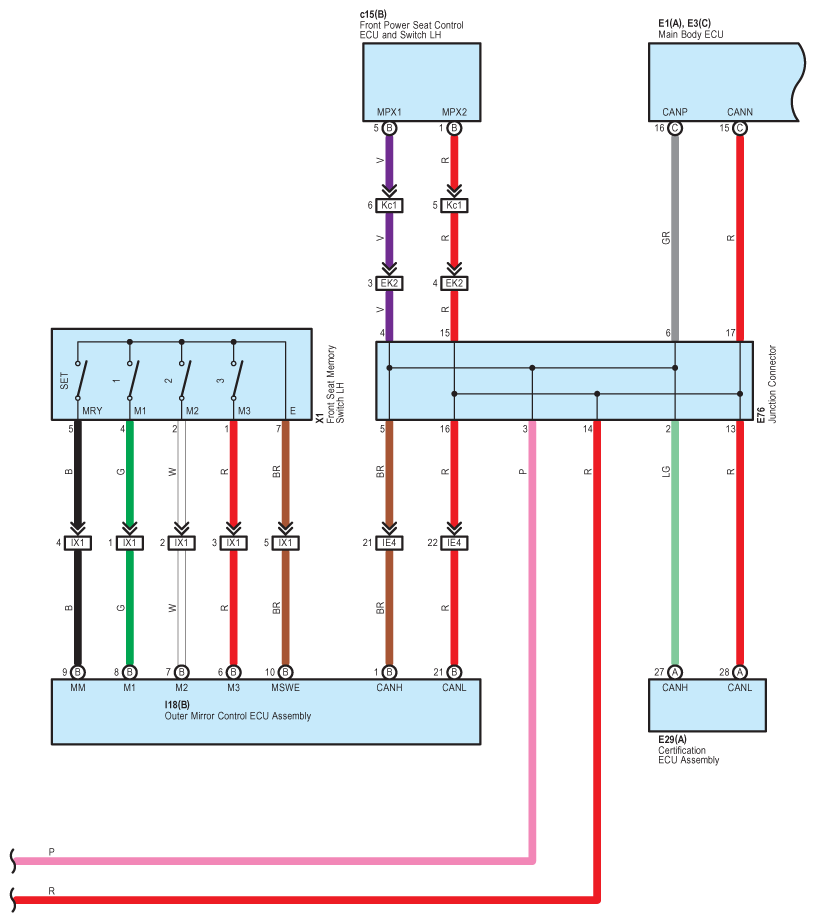

Fig 2: Power Tilt And Power Telescopic - Circuit Diagram (2 Of 3)
G07596956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

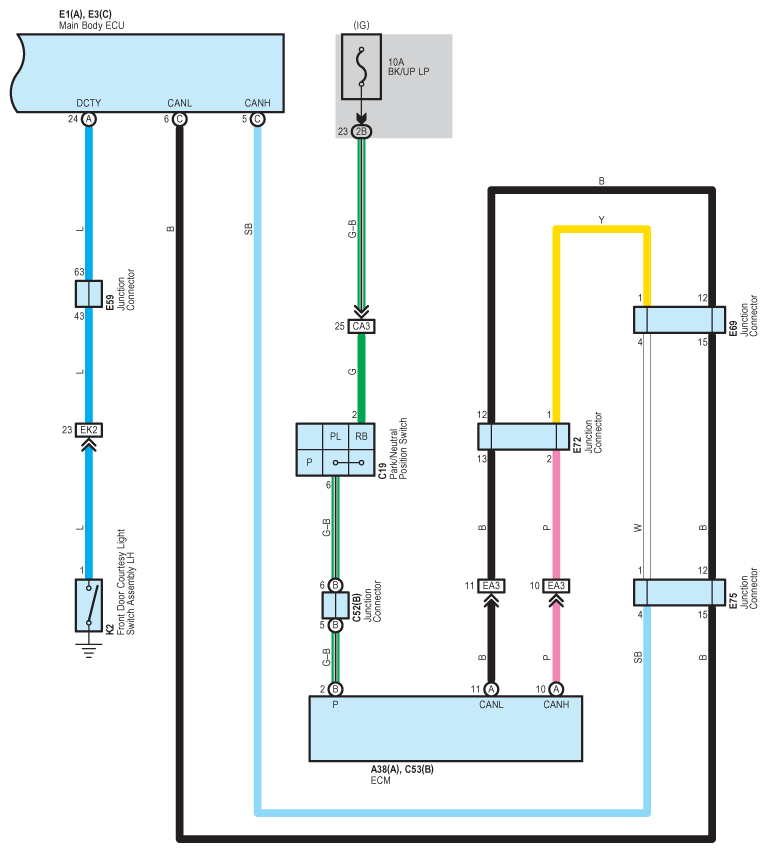

Fig 3: Power Tilt And Power Telescopic - Circuit Diagram (3 Of 3)
G07596957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
