VSC OFF Indicator Light Remains ON: Wiring Diagram

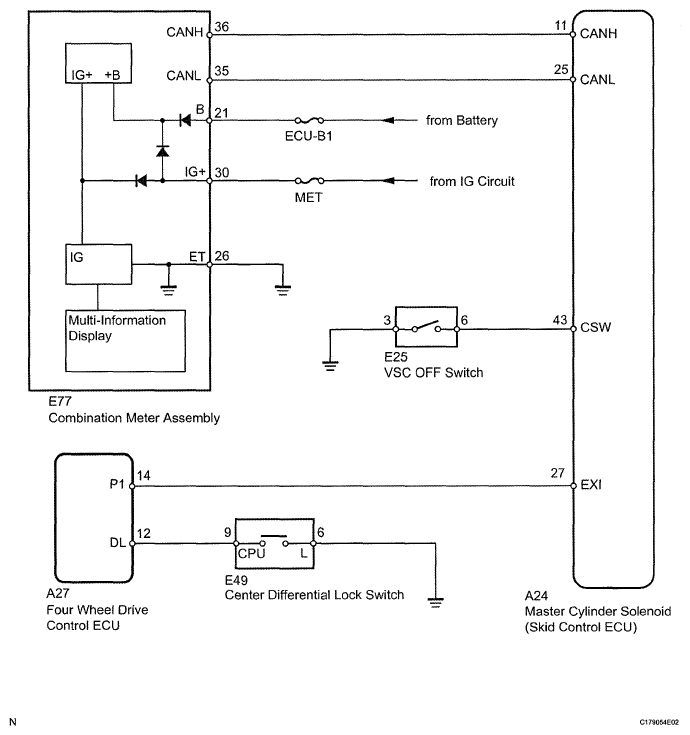

Fig 1: Center Differential Lock Switch - Wiring Diagram

G05761658

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
