Skid Control Buzzer Circuit: Wiring Diagram

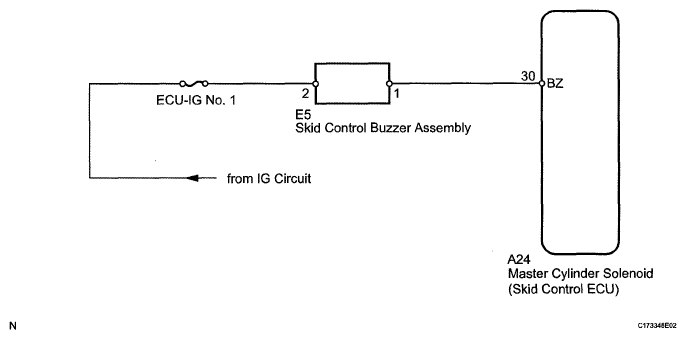

Fig 1: Skid Control Buzzer - Wiring Diagram

G05629933

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
