DTC C1249/49 Open in Stop Light Switch Circuit: Wiring Diagram

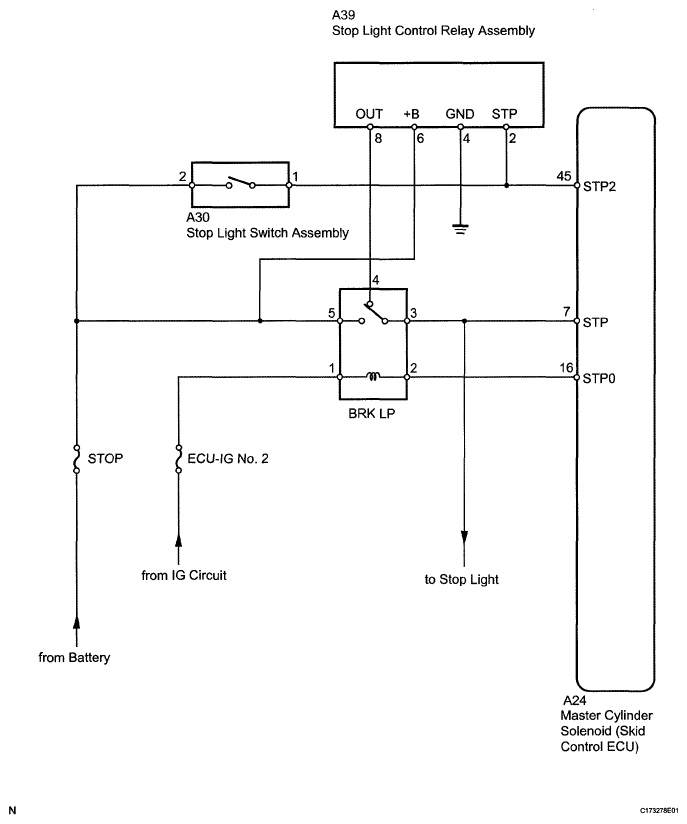

Fig 1: Stop Light Switch - Wiring Diagram

G05629890

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
