ABS Warning Light Remains ON: Wiring Diagram

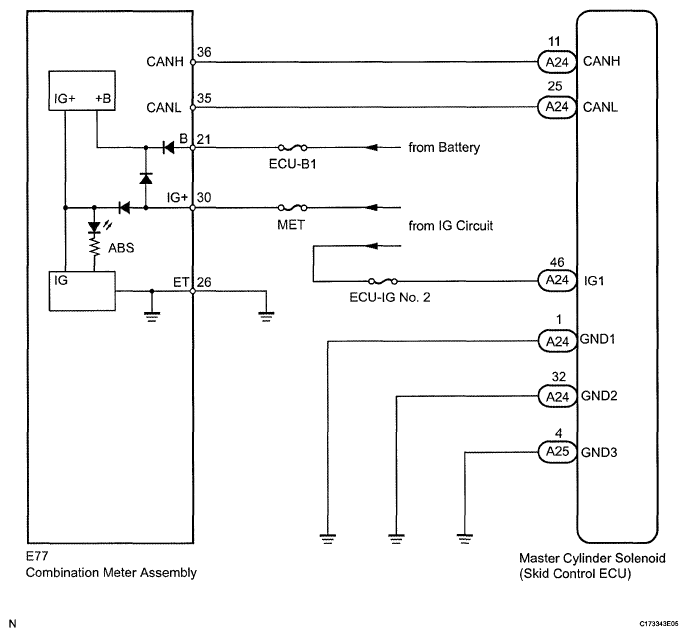

Fig 1: ABS Warning Light Remains ON - Wiring Diagram

G05761646

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
