Windshield Deicer does not Operate: Wiring Diagram

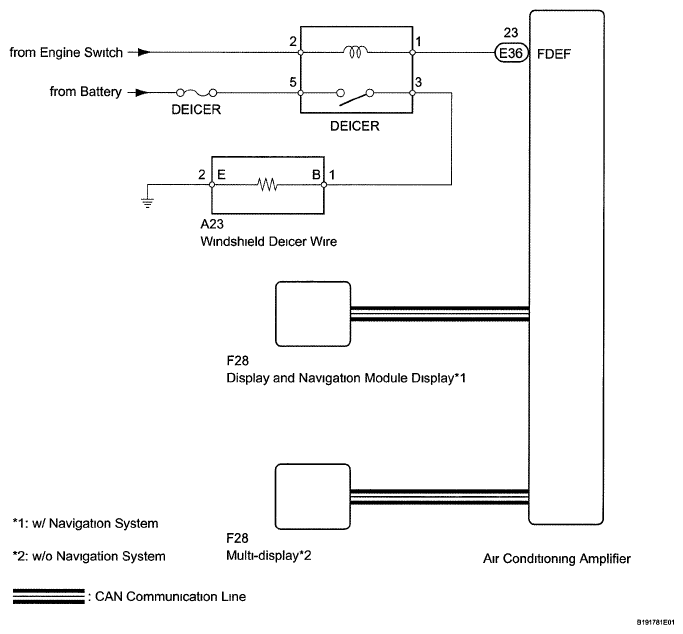

Fig 1: Air Conditioning Amplifier - Wiring Diagram

G05767554

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
