Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

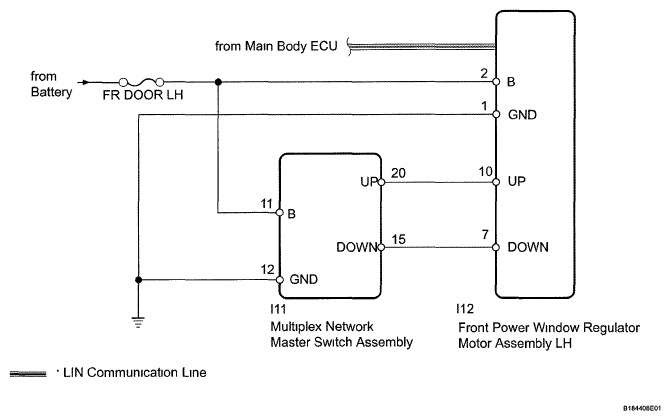

Fig 1: Front Power Window Regulator Motor - Wiring Diagram

G05767429

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
