Lumbar Switch: Components

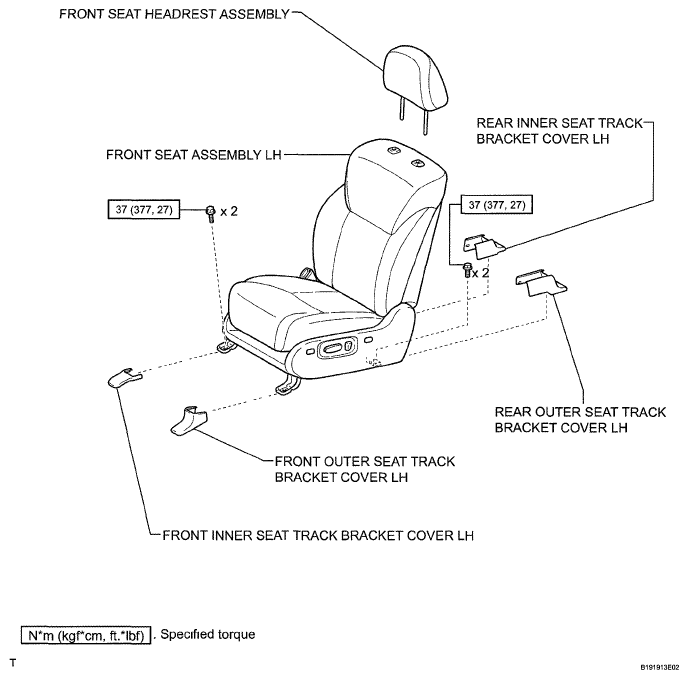

Fig 1: Identifying Lumbar Switch Replacement Components With Torque Specification (1 Of 2)
G05766256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

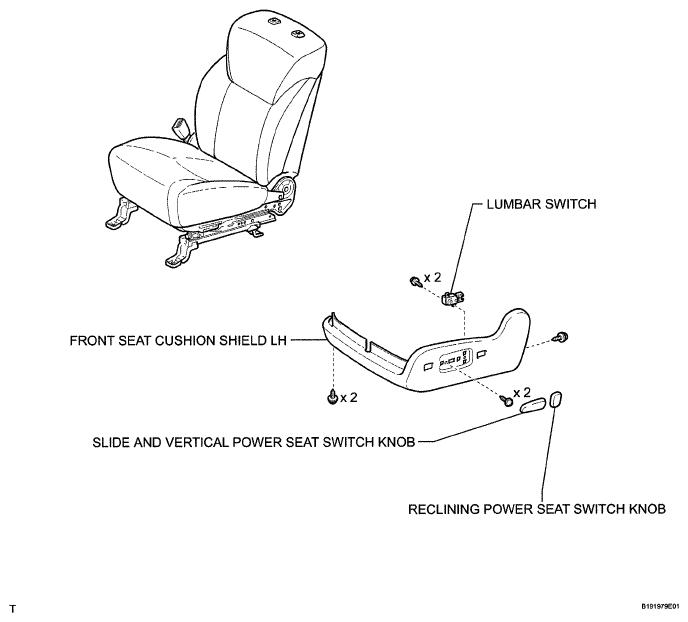

Fig 2: Identifying Lumbar Switch Replacement Components (2 Of 2)
G05766257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
