Lumbar Support Adjuster Assembly: Inspection

  1. INSPECT LUMBAR SUPPORT ADJUSTER ASSEMBLY LH
    1. Check the operation of the lumbar support adjuster.
      1. Check if the lumbar support adjuster moves smoothly when the battery is connected to the lumbar support adjuster motor connector terminals.

        OK

        BATTERY VOLTAGE SPECIFICATIONS

        Measurement Condition Specified Condition
        Battery positive (+) → 1
        Battery negative (-) → 2        		 Hold
        Battery positive (+) → 2
        Battery negative (-) → 1        		 Release

        If the result is not as specified, replace the lumbar support adjuster assembly.

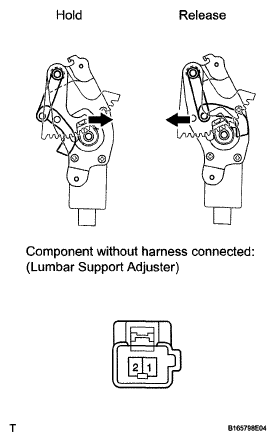

        Fig 1: Identifying Operation Of Lumbar Support Adjuster LH
        G05632096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT LUMBAR SUPPORT ADJUSTER ASSEMBLY RH

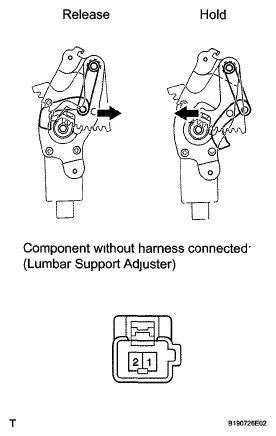

      Fig 2: Identifying Operation Of Lumbar Support Adjuster RH
      G05766272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the operation of the lumbar support adjuster.
      1. Check if the lumbar support adjuster moves smoothly when the battery is connected to the lumbar support adjuster motor connector terminals.

        OK

        BATTERY VOLTAGE SPECIFICATIONS

        Measurement Condition Specified Condition
        Battery positive (+) → 2
        Battery negative (-) → 1        		 Hold
        Battery positive (+) → 1
        Battery negative (-) → 2        		 Release

        If the result is not as specified, replace the lumbar support adjuster assembly.
