System Diagram

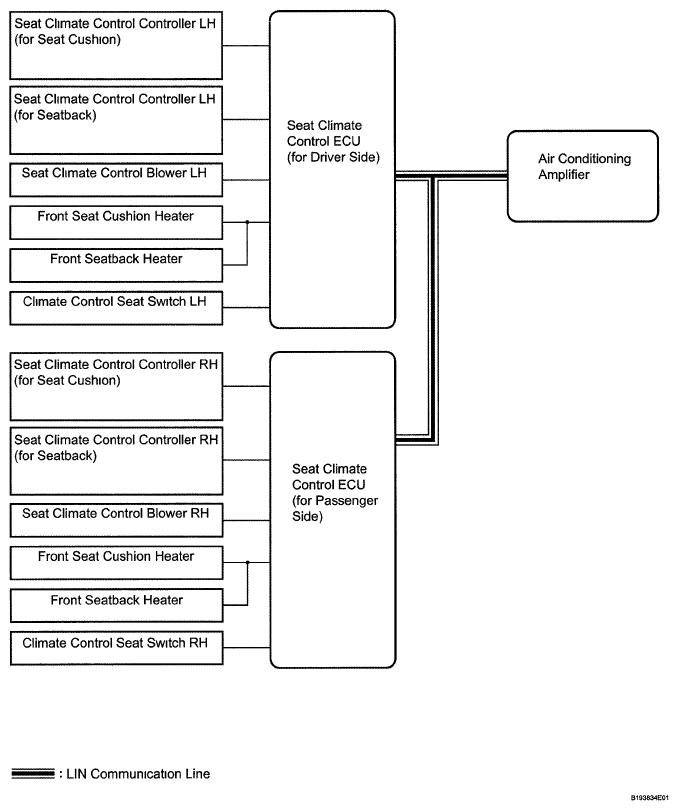

Fig 1: Climate Control Seat System Diagram
G05765539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

SIGNAL REFERENCE

Sender Receiver Signal Line
Climate control ECU A/C amplifier A/C signal LIN
