Climate Control System does not Operate on Driver Side: Wiring Diagram

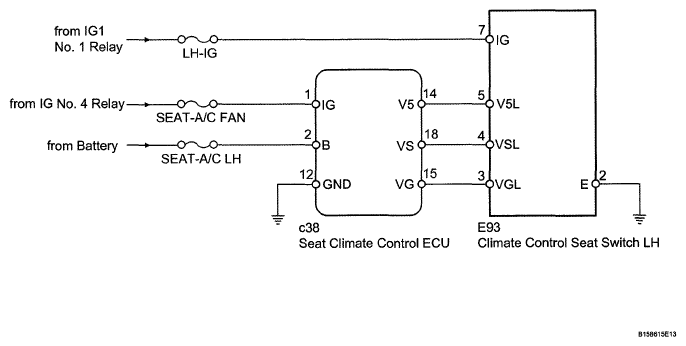

Fig 1: Climate Control System (Driver Side) - Wiring Diagram

G05765566

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
