Inner Rear View Mirror: Components

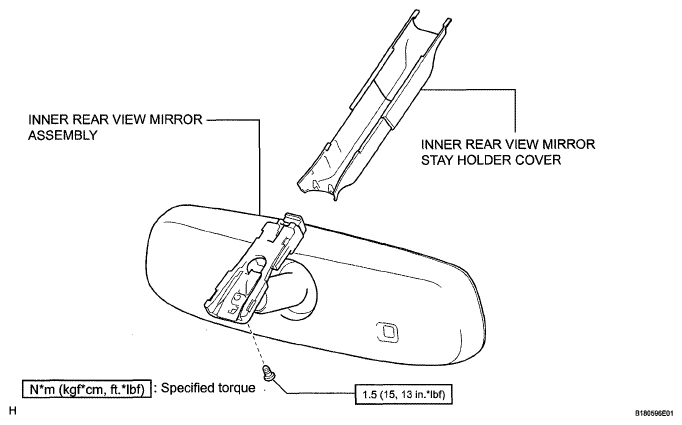

Fig 1: Inner Rear View Mirror Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
