Roof Headlining: Removal

  1. OPEN BACK DOOR
    1. Open the back door before disconnecting the cable from the negative (-) battery terminal, as some procedures are performed with the back door open.
    NOTE: The back door cannot be opened after the cable is disconnected from the negative (-) battery terminal.
  2. REMOVE ENGINE ROOM SIDE COVER LH  (See REMOVAL )
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    NOTE:
    • w/ Navigation System:

      After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

    • When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  4. REMOVE REAR NO. 2 SEAT ASSEMBLY LH
    1. w/ Manual Folding-up Function:

      Remove the rear No. 2 seat assembly LH (See REMOVAL ).

    2. w/ Automatic Folding-up Function:

    Remove the rear No. 2 seat assembly LH (See REMOVAL ).

  5. REMOVE REAR NO. 2 SEAT ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  6. REMOVE FRONT DOOR SCUFF PLATE LH
    1. w/o Illumination:
      1. Detach the 7 claws and 4 clips, and remove the scuff plate.
      Fig 1: Identifying Front Door Scuff Plate LH Claws And Clips (W/O Illumination)
      G05767195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Illumination:
      1. Detach the 7 claws and 4 clips.
      2. Disconnect the connector and remove the scuff plate.
    3. Fig 2: Identifying Front Door Scuff Plate LH Claws And Clips (W/ Illumination)
      G05767196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

  8. REMOVE REAR STEP COVER

    HINT:

    Use the same procedure to remove the step cover on the other side.

    1. w/o Illumination Type Front Door Scuff Plate: Detach the 2 claws and remove the step cover.
      Fig 3: Identifying Step Cover Claws (W/O Illumination)
      G05767197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Illumination Type Front Door Scuff Plate: Detach the 4 claws and remove the step cover.
    Fig 4: Identifying Step Cover Claws (W/ Illumination)
    G05767198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR DOOR SCUFF PLATE LH
    1. w/o Illumination Type Front Door Scuff Plate: Remove the rear door scuff plate.
      1. Remove the screw.
      2. Detach the 3 claws and 4 clips, and remove the scuff plate.
      Fig 5: Identifying Rear Door Scuff Plate LH Claws And Clips (W/O Illumination)
      G05767199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Illumination Type Front Door Scuff Plate: Remove the rear door scuff plate.
      1. Remove the screw.
      2. Detach the 3 claws and 4 clips, and remove the scuff plate.
      3. Fig 6: Identifying Rear Door Scuff Plate LH Claws And Clips (W/ Illumination)
        G05767200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

  11. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE
    1. Detach the 6 clips and 4 claws, and remove the support plate.
    Fig 7: Identifying Rear Floor Mat Rear Support Plate Clips And Claws
    G05767201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Use the same procedure to remove the front assist grip on the other side.

    1. Detach the 4 claws and remove the 2 assist grip plugs.
      Fig 8: Identifying Front Assist Grip Claws
      G05767202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts.
    3. Detach the 2 claws and remove the front assist grip.
    Fig 9: Identifying Front Assist Grip Bolts And Claws
    G05767203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FRONT PILLAR GARNISH LH
    1. Detach the clip and 3 guides
    2. Disconnect the speaker connector and then remove the front pillar garnish.
      Fig 10: Identifying Front Pillar Garnish LH Clip And Guides
      G05767204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Protect the curtain shield airbag.
      1. Thoroughly cover the airbag with a cloth or nylon sheet and fix the ends of the cover with adhesive tape, as shown in the illustration.
      NOTE: Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.
    4. Fig 11: Identifying Curtain Shield Airbag Assembly And Adhesive Tape
      G05767205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  15. REMOVE CENTER PILLAR GARNISH COVER LH

    HINT:

    • When removing the center pillar garnish cover, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
    • After moving the front seat, disconnect the cable from the negative (-) battery terminal.
    1. Detach the 2 clips and 2 guides, and remove the cover.
    2. Fig 12: Identifying Center Pillar Garnish Cover LH Clips And Guides
      G05767206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE CENTER PILLAR GARNISH COVER RH

    HINT:

    Use the same procedures described for the LH side.

  17. REMOVE CENTER LOWER PILLAR GARNISH LH

    HINT:

    • When removing the center lower pillar garnish, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
    • After moving the front seat, disconnect the cable from the negative (-) battery terminal.
    1. Remove the bolt and seat belt anchor.
      Fig 13: Identifying Seat Belt Anchor Bolt
      G05767207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 claws and 7 clips, and remove the center lower pillar garnish.
  18. REMOVE CENTER LOWER PILLAR GARNISH RH

    HINT:

    • When removing the center lower pillar garnish, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
    • After moving the front seat, disconnect the cable from the negative (-) battery terminal.
    Fig 14: Identifying Center Lower Pillar Garnish Claws And Clips
    G05767208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.
    2. Remove the bolt and seat belt anchor
      Fig 15: Identifying Seat Belt Anchor Bolt And Connector
      G05767209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 2 claws and 7 clips, and remove the center lower pillar garnish.
    Fig 16: Identifying Center Lower Pillar Garnish Claws And Clips
    G05767210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR ASSIST GRIP ASSEMBLY

    HINT:

    Use the same procedure to remove the rear assist grip on the other side.

    1. Detach the 4 claws and remove the 2 assist grip plugs.
      Fig 17: Identifying Rear Assist Grip Claws
      G05767211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts.
    3. Detach the 2 claws and remove the rear assist grip.
    Fig 18: Identifying Rear Assist Grip Bolts And Claws
    G05767212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE CENTER PILLAR GARNISH LH
    1. Remove the bolt.
    2. Detach the 2 clips and 2 guides
    3. Pass the seat belt anchor through the center pillar garnish, and remove the center pillar garnish.
    4. Fig 19: Identifying Center Pillar Garnish LH Bolt, Clips And Guides
      G05767213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  22. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    HINT:

    Use the same procedure to remove the luggage compartment trim hook on the other side.

    1. Remove the luggage compartment trim hook by turning it clockwise.
    Fig 20: Removing Luggage Compartment Trim Hook
    G05767214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE REAR SEAT COVER CAP (for Rear No. 2 Seat with Manual Folding-up Function)

    HINT:

    Use the same procedure to remove the rear seat cover cap on the other side

    1. Using a screwdriver, detach the 3 claws and remove the rear seat cover cap.

    HINT:

    Tape the screwdriver tip before use.

    Fig 21: Removing Rear Seat Cover Cap Claws
    G05767215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH

    HINT:

    When removing the front quarter trim panel, operate the reclining adjuster release handle and move the No. 1 rear seat to the position shown in the illustration.

    Fig 22: Moving No. 1 Rear Seat
    G05767216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 3 claws and remove the cover.
      Fig 23: Identifying Cover Claws
      G05767217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and rear No. 1 seat belt anchor.
      Fig 24: Identifying Rear No. 1 Seat Belt Anchor Bolt
      G05767218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and rear No. 2 seat belt anchor.
    4. for Rear No. 2 Seat with Manual Folding-up Function:
      1. Remove the screw, clip and bolt.

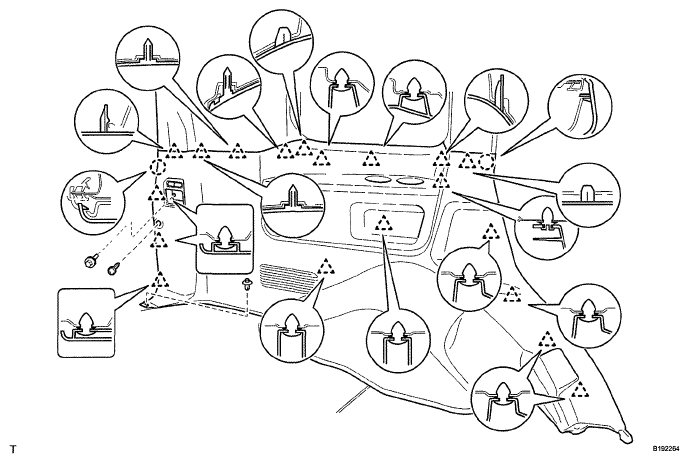

      2. Detach the 19 clips and 2 claws.
        Fig 25: Identifying Rear No. 2 Seat Belt Anchor Bolt
        G05767219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disconnect the thermistor connector, power outlet socket connector and rear seat lock control lever cable, and then remove the quarter trim panel
      Fig 26: Identifying Rear No. 2 Seat With Manual Folding-Up Screw, Bolt, Clips And Claws
      G05767220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. for Rear No. 2 Seat with Automatic Folding-up Function:
      1. Remove the screw and clip
      2. Detach the 19 clips and 2 claws.
      3. Disconnect the thermistor connector and power outlet socket connector, and then remove the quarter trim panel.
    Fig 27: Identifying Rear No. 2 Seat With Automatic Folding-Up Screw, Clips And Claws
    G05767221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH

    HINT:

    When removing the front quarter trim panel, operate the reclining adjuster release handle and move the No. 1 rear seat to the position shown in the illustration.

    Fig 28: View Of Front Quarter Trim Panel Assembly RH
    G05767222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 3 claws and remove the cover.
      Fig 29: Identifying Cover Claws
      G05767223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and rear No. 1 seat belt anchor.
      Fig 30: Identifying Rear No. 1 Seat Belt Anchor Bolt
      G05767224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 3 claws and remove the cover.
      Fig 31: Identifying Cover Claws
      G05767225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the bolt and rear No. 2 seat belt anchor.
    5. for Rear No. 2 Seat with Manual Folding-up Function:
      1. Remove the screw, clip and bolt.
      2. Detach the 17 clips and 2 claws.
        Fig 32: Identifying Rear No. 2 Seat Belt Anchor Bolt
        G05767226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

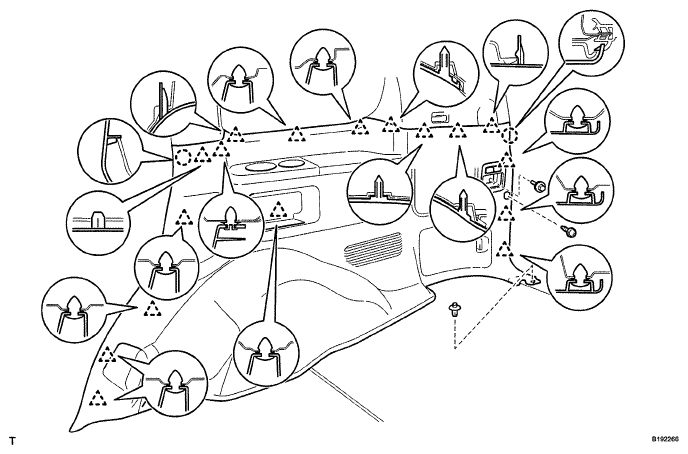

      3. Disconnect the thermistor connector and rear seat lock control lever cable, and then remove the quarter trim panel.
      Fig 33: Identifying Rear No. 2 Seat With Manual Folding-Up Screw, Bolt, Clips And Claws
      G05767227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. for Rear No. 2 Seat with Automatic Folding-up Function:
      1. Remove the screw and clip.
      2. Detach the 17 clips and 2 claws.
      3. Disconnect the thermistor connector and then remove the quarter trim panel.

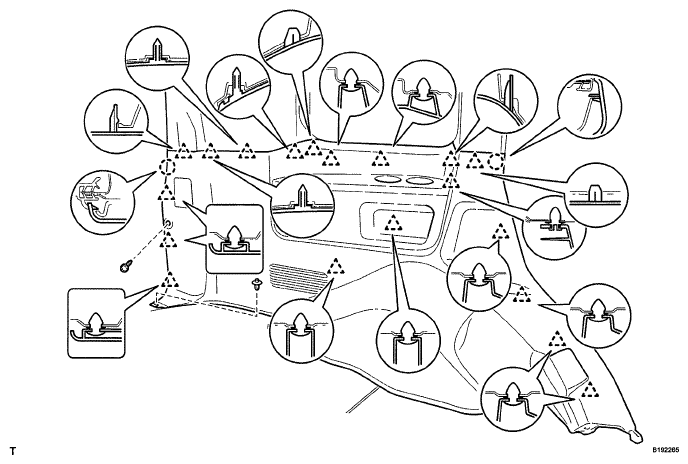

      Fig 34: Identifying Rear No. 2 Seat With Automatic Folding-Up Screw, Clips And Claws
      G05767228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE REAR FRONT QUARTER TRIM GARNISH LH
    1. Remove the screw.
    2. Detach the clip and 2 guides.
    3. Pass the seat belt anchor through the quarter trim garnish, and remove the quarter trim garnish
    4. Fig 35: Identifying Rear Front Quarter Trim Garnish LH Screw, Clip And Guides
      G05767229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE REAR FRONT QUARTER TRIM GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  28. REMOVE REAR UPPER PILLAR GARNISH LH

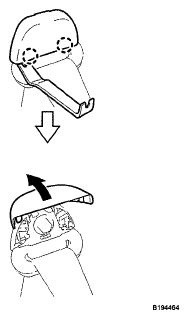

    1. Using a molding remover, detach the 2 claws and open the seat belt shoulder anchor cover.
      Fig 36: Detaching Rear Upper Pillar Garnish LH Claws
      G05767230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and seat belt shoulder anchor.
      Fig 37: Identifying Seat Belt Shoulder Anchor Bolt
      G05767231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 5 clips and remove the rear upper pillar garnish.
    4. Fig 38: Identifying Rear Upper Pillar Garnish Clips
      G05767232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE CENTER BACK DOOR GARNISH (w/ Power Back Door)  (See DISASSEMBLY )
  30. REMOVE BACK DOOR SIDE GARNISH RH (w/ Power Back Door)  (See DISASSEMBLY )
  31. REMOVE BACK DOOR SERVICE HOLE COVER RH (w/ Power Back Door)  (See DISASSEMBLY )
  32. REMOVE REAR UPPER PILLAR GARNISH RH
    1. Using a molding remover, detach the 2 claws and open the seat belt shoulder anchor cover.

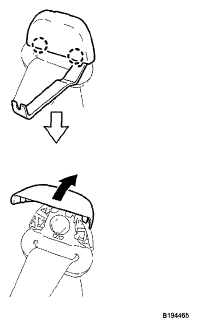

      Fig 39: Detaching Rear Upper Pillar Garnish RH Claws
      G05767233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and seat belt shoulder anchor.
      Fig 40: Locating Seat Belt Shoulder Anchor Bolt
      G05767234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/o Power Back Door:
      1. Detach the 5 clips and remove the rear upper pillar garnish.
      Fig 41: Identifying Rear Upper Pillar Garnish Clips (W/O Power Back Door)
      G05767235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. w/ Power Back Door:
      1. Detach the 5 clips.
      2. Pass the power back door rod through the rear upper pillar garnish, and remove the rear upper pillar garnish.
      3. Fig 42: Identifying Rear Upper Pillar Garnish Clips (W/ Power Back Door)
        G05767236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE MAP LIGHT ASSEMBLY

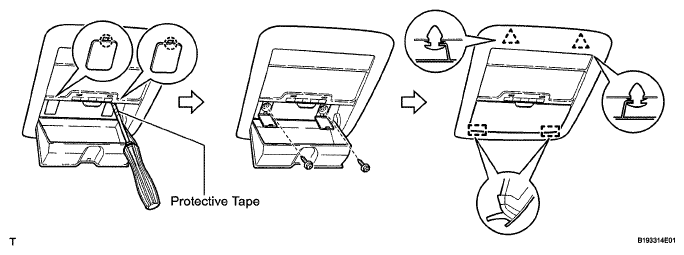

    1. Using a screwdriver, detach the 2 claws and open the 2 covers.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 2 screws.
    3. Detach the 2 clips and 2 guides.
    4. Disconnect the 2 connectors and then remove the map light.
    Fig 43: Detaching Map Light Claws
    G05767237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE NO. 1 ROOM LIGHT ASSEMBLY (w/o Rear Seat Entertainment System)
    1. Detach the 4 clips.
    2. Disconnect the connector and then remove the room light.
    Fig 44: Identifying No. 1 Room Light Assembly Clips (W/O Rear Seat Entertainment System)
    G05767238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE NO. 1 ROOF LINING TRIM COVER (w/ Rear Seat Entertainment System)
    1. Detach the 4 claws and remove the cover.
    Fig 45: Identifying No. 1 Roof Lining Trim Cover Claws (W/ Rear Seat Entertainment System)
    G05767239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE NO. 2 ROOF LINING TRIM COVER (w/ Rear Seat Entertainment System)
    1. Detach the 4 claws and remove the cover.
    Fig 46: Identifying No. 2 Roof Lining Trim Cover Claws (W/ Rear Seat Entertainment System)
    G05767240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE ROOF CONSOLE BOX ASSEMBLY (w/ Rear Seat Entertainment System)
    1. Remove the 2 bolts.
    2. Detach the 4 clips and 2 claws.
    3. Disconnect the connector and then remove the roof console box.
    Fig 47: Identifying Roof Console Box Assembly Bolts, Clips And Claws (W/ Rear Seat Entertainment System)
    G05767241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE NO. 3 ROOM LIGHT ASSEMBLY
    1. Using a screwdriver, detach the 4 claws and remove the room light lens.

      HINT:

      Tape the screwdriver tip before use.

      Fig 48: Detaching No. 3 Room Light Claws
      G05767242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 covers.
      Fig 49: Identifying Covers
      G05767243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

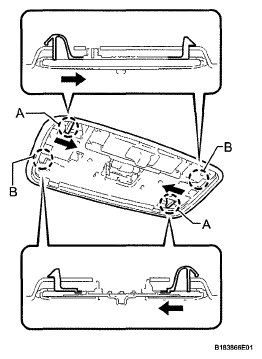

    3. Using a screwdriver, push the 2 levers in the direction of the arrows in the illustration, and detach the 2 claws labeled A.
    4. Detach the 2 claws labeled B.
      Fig 50: Pushing Levers
      G05767244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Detach the 4 claws and remove the room light from the room light switch base.
    Fig 51: Identifying Room Light Switch Base Claws
    G05767245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE VISOR BRACKET COVER

    HINT:

    Use the same procedure to remove the visor bracket cover on the other side.

    1. Detach the 4 claws and remove the visor bracket cover.
    Fig 52: Identifying Visor Bracket Cover Claws
    G05767246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and visor.
  41. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side

    Fig 53: Identifying Visor Assembly RH Screws
    G05767247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE VISOR HOLDER

    HINT.

    Use the same procedure to remove the visor holder on the other side.

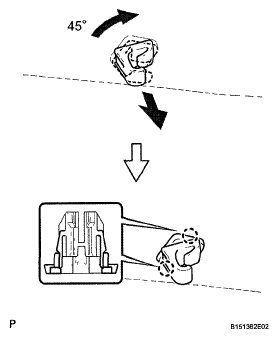

    1. Turn the visor holder approximately 45° and pull it out as shown in the illustration.
    2. Detach the 2 claws and remove the visor holder
    Fig 54: Turning Visor Holder Approximately 45°
    G05767248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE CENTER VISOR ASSEMBLY LH
    1. Using a screwdriver, pry off the cover to detach the 2 clips and remove the center visor.

    HINT:

    Tape the screwdriver tip before use.

    Fig 55: Prying Off Cover
    G05767249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE CENTER VISOR ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  45. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER  (See SYSTEM DIAGRAM )
  46. REMOVE RAIN SENSOR COVER  (See REMOVAL )
  47. REMOVE SEAT BELT ANCHOR COVER
    1. Detach the 4 clips and 4 guides, and remove the seat belt anchor cover.
    Fig 56: Identifying Seat Belt Anchor Cover Clips And Guides
    G05767250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE ASSIST GRIP ASSEMBLY

    HINT:

    Use the same procedure to remove the assist grip on the other side.

    1. Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.

      HINT:

      Tape the screwdriver tip before use.

    2. Detach the 2 clips and remove the assist grip.
    3. Remove the 2 clips from the vehicle body.
    Fig 57: Detaching Assist Grip Claws
    G05767251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE NO. 2 ASSIST GRIP ASSEMBLY LH
    1. Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.

      HINT:

      Tape the screwdriver tip before use.

    2. Detach the 2 clips and remove the assist grip.
    3. Remove the 2 clips from the vehicle body.
  50. REMOVE NO. 2 ASSIST GRIP ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 58: Detaching No. 2 Assist Grip Assembly LH Claws
    G05767252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. REMOVE 3RD SEAT ASSIST GRIP ASSEMBLY

    HINT:

    Use the same procedure to remove the 3rd seat assist grip on the other side.

    1. Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.

      HINT:

      Tape the screwdriver tip before use.

    2. Detach the 2 clips and remove the assist grip.
    3. Remove the 2 clips from the vehicle body.
    Fig 59: Detaching 3Rd Seat Assist Grip Claws
    G05767253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE ROOF HEADLINING ASSEMBLY

    HINT:

    • When removing the roof headlining, connect the cable to the negative (-) battery terminal and move the front seats and No. 1 rear seat to the position shown in the illustration.
    • After moving the seats, disconnect the cable from the negative (-) battery terminal.
    Fig 60: Identifying Roof Headlining Assembly
    G05767254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the inner mirror connector.
      Fig 61: Locating Inner Mirror Connector
      G05767255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the rain sensor connector.
      Fig 62: Locating Rain Sensor Connector
      G05767256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the drive gear connector.
      Fig 63: Locating Drive Gear Connector
      G05767257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the 3 roof wire connectors and washer hose.
    5. Detach the 4 clamps.
      Fig 64: Locating Roof Wire Connectors And Washer Hose
      G05767258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the bolt.
    7. Disconnect the antenna cord connector and detach the 2 clamps.
      Fig 65: Locating Bolt And Antenna Cord Connector
      G05767259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Disconnect the antenna cord connector.
      Fig 66: Locating Antenna Cord Connector
      G05767260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Disconnect the washer hose.
      Fig 67: Locating Washer Hose
      G05767261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

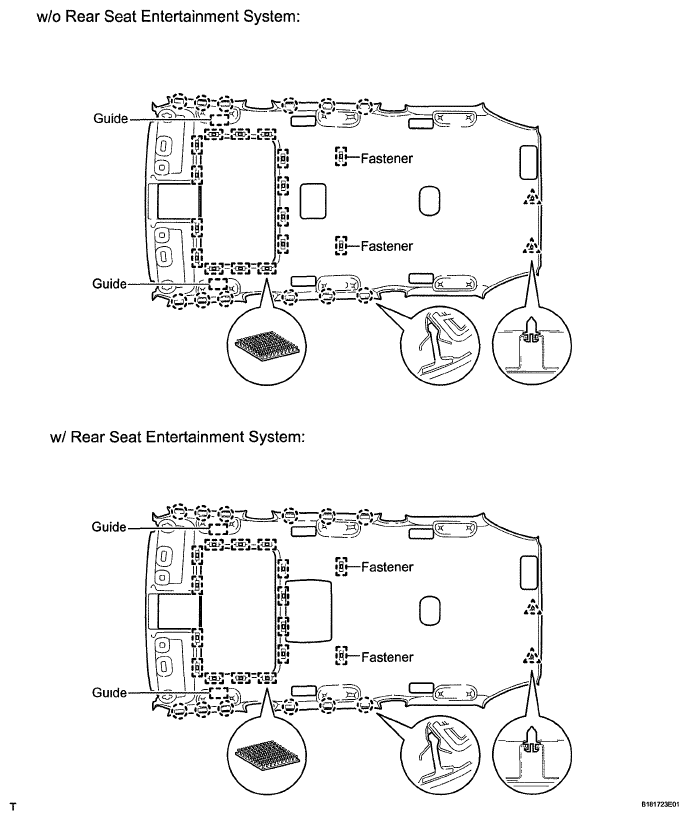

    10. Detach the 12 claws, 2 clips, 2 guides and 16 fasteners.
      Fig 68: Identifying Rear Seat Entertainment System Claws, Clips, Guides And Fasteners
      G05767262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Remove the headlining from the rear of the vehicle as shown in the illustration.
      NOTE: Be careful not to damage the roof headlining when taking it out.
      Fig 69: Removing Headlining From Rear Of Vehicle
      G05767263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. REMOVE FRONT ROOF SIDE RAIL GARNISH LH
    1. Detach the 3 clips.
    2. Cut off the 3 clips and remove the roof side rail garnish.
    3. Remove the 3 clips from the vehicle body.
    4. Fig 70: Identifying Front Roof Side Rail Garnish LH Clips
      G05767264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. REMOVE FRONT ROOF SIDE RAIL GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  55. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Remove the front door opening trim weatherstrip.
  56. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 71: Identifying Front Door Opening Trim Weatherstrip
    G05767265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. Remove the rear door opening trim weatherstrip.
  58. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 72: Identifying Rear Door Opening Trim Weatherstrip
    G05767266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. REMOVE BACK DOOR WEATHERSTRIP
    1. Remove the back door weatherstrip.
    Fig 73: Identifying Back Door Weatherstrip
    G05767267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. REMOVE FRONT DOOR SCUFF PLATE OUTSIDE LH
    1. Put protective tape around the front door scuff plate outside.
    2. Detach the 4 clips and remove the front door scuff plate outside.
    3. Fig 74: Identifying Front Door Scuff Plate Outside LH Clips
      G05767268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  61. REMOVE FRONT DOOR SCUFF PLATE OUTSIDE RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 75: Identifying Rear Door Scuff Plate Outside RH Clips
    G05767269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  62. REMOVE REAR DOOR SCUFF PLATE OUTSIDE LH
    1. Put protective tape around the rear door scuff plate outside.
    2. Detach the 3 clips and remove the rear door scuff plate outside.
  63. REMOVE REAR DOOR SCUFF PLATE OUTSIDE RH

    HINT:

    Use the same procedures described for the LH side.

  64. REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH
    1. Detach the 6 claws of the plate, and slide the plate in the direction of the arrow to remove it.
    2. Fig 76: Sliding Plate
      G05767270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  65. REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  66. REMOVE REAR SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH
    1. Detach the 6 claws and remove the plate.
  67. REMOVE REAR SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 77: Identifying Rear Shoulder Belt Anchor Plate Sub-Assembly RH Claws
    G05767271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  68. REMOVE ROOF SIDE INNER GARNISH COVER LH
    1. Detach the 7 claws and remove the cover.
  69. REMOVE ROOF SIDE INNER GARNISH COVER RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 78: Identifying Roof Side Inner Garnish Cover RH Claws
    G05767272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  70. REMOVE REAR NO. 1 SEAT SHOULDER BELT HANGER

    HINT:

    Use the same procedure to remove the hanger on the other side.

    1. Remove the 2 spring nuts and hanger.
    Fig 79: Identifying Rear No. 1 Seat Shoulder Belt Hanger Nut
    G05767273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  71. REMOVE REAR NO. 2 SEAT SHOULDER BELT HANGER LH
    1. Remove the 2 spring nuts and hanger.
    2. Fig 80: Identifying Rear No. 2 Seat Shoulder Belt Hanger LH Nut
      G05767274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  72. REMOVE REAR NO. 2 SEAT SHOULDER BELT HANGER RH

    HINT:

    Use the same procedures described for the LH side.

  73. REMOVE QUARTER TRIM COVER SUB-ASSEMBLY LH
    1. Remove the 8 screws and duct.
      Fig 81: Identifying Quarter Trim Cover LH Screws And Duct
      G05767275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 7 screws.
    3. Detach the 4 claws and remove the quarter trim cover.

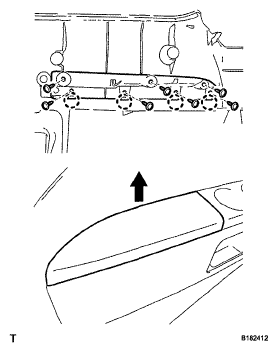

    Fig 82: Removing Quarter Trim Cover
    G05767276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  74. REMOVE QUARTER TRIM COVER SUB-ASSEMBLY RH
    1. Remove the 7 screws.
    2. Detach the 4 claws and remove the quarter trim cover.

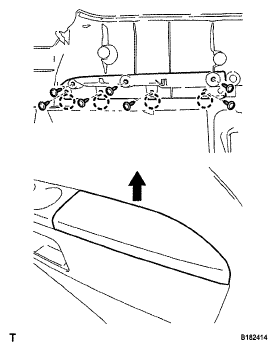

    Fig 83: Removing Quarter Trim Cover RH
    G05767277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  75. REMOVE NO. 2 CUP HOLDER
    1. Remove the 5 screws.
    2. Detach the 3 claws and remove the cup holder

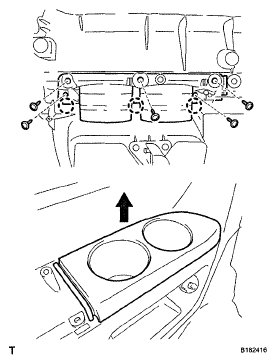

    Fig 84: Identifying No. 2 Cup Holder Screws And Claws
    G05767278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  76. REMOVE NO. 1 CUP HOLDER
    1. Remove the 5 screws.
    2. Detach the 3 claws and remove the cup holder

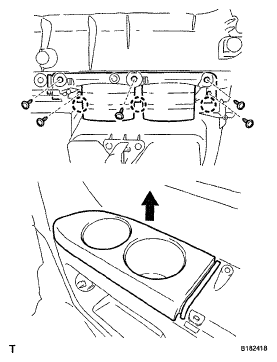

    Fig 85: Identifying No. 1 Cup Holder Screws And Claws
    G05767279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  77. REMOVE NO. 1 SIDE TRIM BASE COVER LH
    1. Detach the 4 claws and remove the cover.
    Fig 86: Identifying No. 1 Side Trim Base Cover LH Claws
    G05767280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  78. REMOVE NO. 1 SIDE TRIM BASE COVER RH
    1. Remove the 6 screws and duct.
      Fig 87: Identifying No. 1 Side Trim Base Cover RH Screws And Duct
      G05767281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 4 claws and remove the cover.
    Fig 88: Identifying Cover Claws
    G05767282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  79. REMOVE NO. 2 SIDE TRIM BASE COVER LH
    1. Detach the 4 claws and remove the cover.
    Fig 89: Identifying No. 2 Side Trim Base Cover LH Claws
    G05767283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  80. REMOVE NO. 2 SIDE TRIM BASE COVER RH

    HINT:

    Use the same procedures described for the LH side.

  81. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH (for Rear No. 2 Seat with Manual Folding-up Function)  (See REMOVAL )
  82. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH (for Rear No. 2 Seat with Manual Folding-up Function)

    HINT:

    Use the same procedures described for the LH side.

  83. REMOVE REAR NO. 2 SEAT COVER BEZEL (for Rear No. 2 Seat with Manual Folding-up Function)
    1. Detach the 6 clips and remove the rear No. 2 seat cover bezel.
    2. Fig 90: Identifying Rear No. 2 Seat Cover Bezel Clips
      G05767284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  84. REMOVE REAR NO. 1 SEAT COVER BEZEL (for Rear No. 2 Seat with Manual Folding-up Function)

    HINT:

    Use the same procedures described for the LH side.

  85. REMOVE FOLD SEAT SWITCH ASSEMBLY (for Rear No. 2 Seat with Automatic Folding-up Function)
    1. Detach the 6 clips and remove the fold seat switch.
    Fig 91: Identifying Fold Seat Switch Assembly Clips
    G05767285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  86. REMOVE QUARTER TRIM COVER LH (for Rear No. 2 Seat with Automatic Folding-up Function)
    1. Detach the 6 clips and remove the quarter trim cover.
    2. Fig 92: Identifying Quarter Trim Cover LH Clips
      G05767286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  87. REMOVE QUARTER TRIM LID SUB-ASSEMBLY RH
    1. Remove the quarter trim lid.
  88. REMOVE SIDE TRIM BOX COVER (w/o Woofer)
    1. Remove the side trim box cover.
  89. REMOVE SIDE TRIM BOX (w/o Woofer)
    1. Remove the 9 screws and side trim box.
    Fig 93: Identifying Side Trim Box Screws (W/O Woofer)
    G05767287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  90. REMOVE NO. 2 MULTIPLEX NETWORK BODY ECU
    1. Disconnect the 2 connectors.
    2. Remove the bolt and multiplex network body ECU.
    Fig 94: Locating No. 2 Multiplex Network Body ECU Connectors And Bolt
    G05767288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
