Roof Headlining: Reassembly

1. w/o Rear Seat Entertainment System: Install the No 1 roof wire.
   1. Place double-sided tape along the center of the harness marking and washer marking.

      HINT

      Make sure that the double-sided tape is not peeling off or misaligned

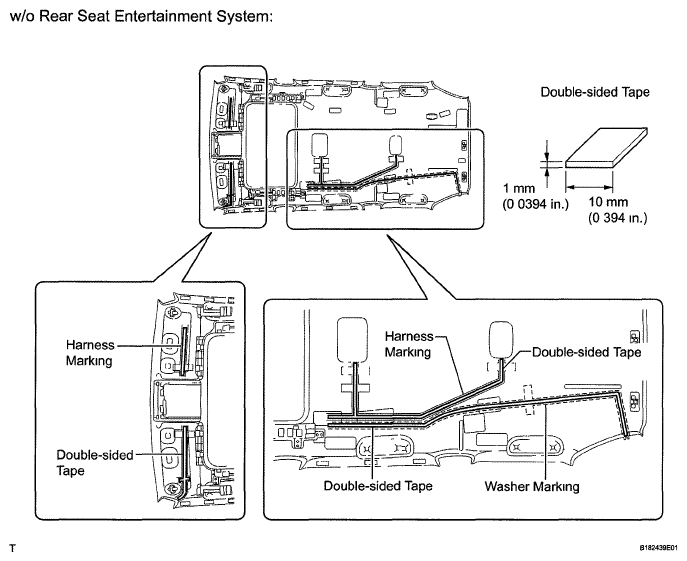

      Fig 1: Identifying Double-Sided Tape Applying Area (W/O Rear Seat Entertainment System)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the peeling paper from the double-sided tape while not touching the adhesive side.
   3. Align the triangle mark of the roof wire protector with the V mark of the headlining as shown in the illustration, and then attach the roof wire protector.
   4. Attach each clamp as shown in the illustration.
   5. Align the roof wire and washer hose with the V marks of the headlining as shown in the illustration, and attach them to the headlining.

      HINT:

      • Attach the washer hose from the front to the point labeled A, and attach the washer hose from the rear to the point labeled B as shown in the illustration.
      • Attach the extra length of the washer hose to the part labeled C in the illustration.
   6. Turn the visor connectors approximately 90° clockwise to install them to the roof headlining.

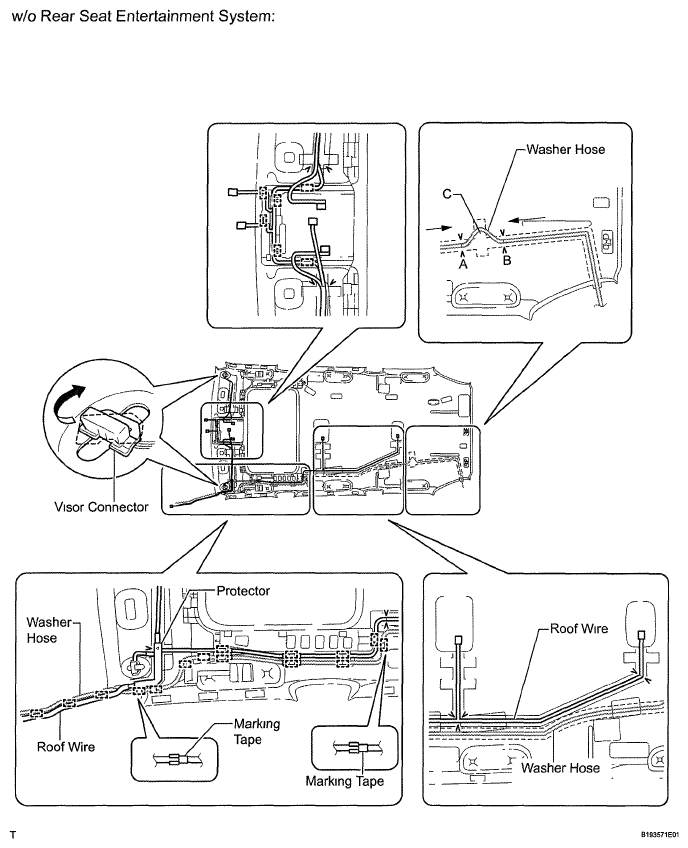

      Fig 2: Turning Visor Connectors Approximately 90° Clockwise (W/O Rear Seat Entertainment System)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   7. Place tape at the wire harness marking and washer marking locations as shown in the illustration to fix the roof wire and washer hose in place.

      HINT:

      Apply sufficient pressure when placing tape.

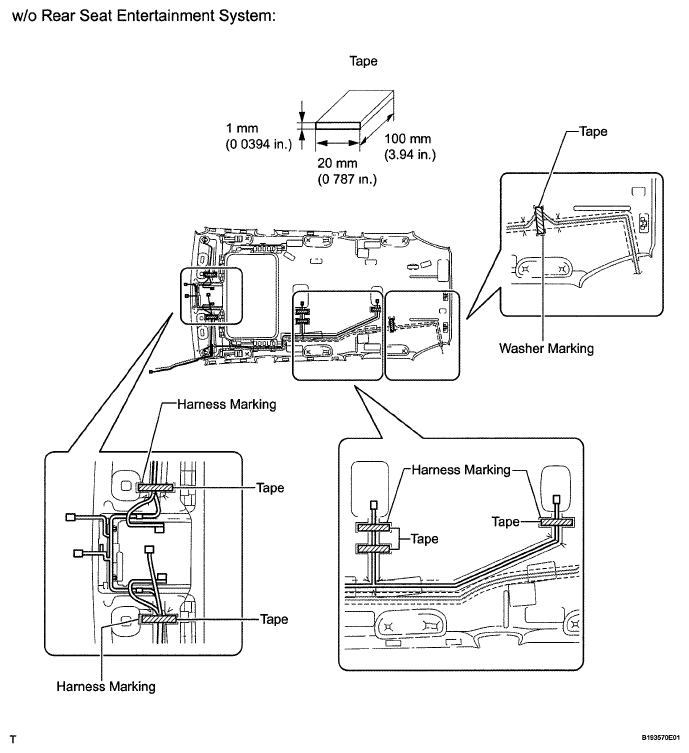

      Fig 3: Identifying Wire Harness Marking And Washer Marking Locations (W/O Rear Seat Entertainment System)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/ Rear Seat Entertainment System:

Install the No. 1 roof wire.

1. Place double-sided tape along the center of the harness marking and washer marking.

   HINT.

   Make sure that the double-sided tape is not peeling off or misaligned.

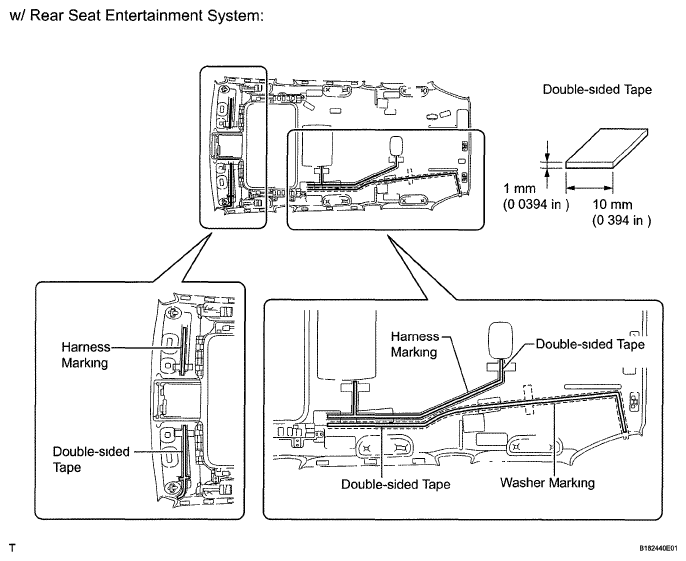

   Fig 4: Identifying Double-Sided Tape Applying Area (W/ Rear Seat Entertainment System)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the peeling paper from the double-sided tape while not touching the adhesive side.
3. Align the triangle mark of the roof wire protector with the V mark of the headlining as shown in the illustration, and then attach the roof wire protector.
4. Attach each clamp as shown in the illustration.
5. Align the roof wire and washer hose with the V marks of the headlining as shown in the illustration, and attach them to the headlining.

   HINT:

   • Attach the washer hose from the front to the point labeled A, and attach the washer hose from the rear to the point labeled B as shown in the illustration.
   • Attach the extra length of the washer hose to the part labeled C in the illustration.
6. Turn the visor connectors approximately 90° clockwise to install them to the roof headlining.

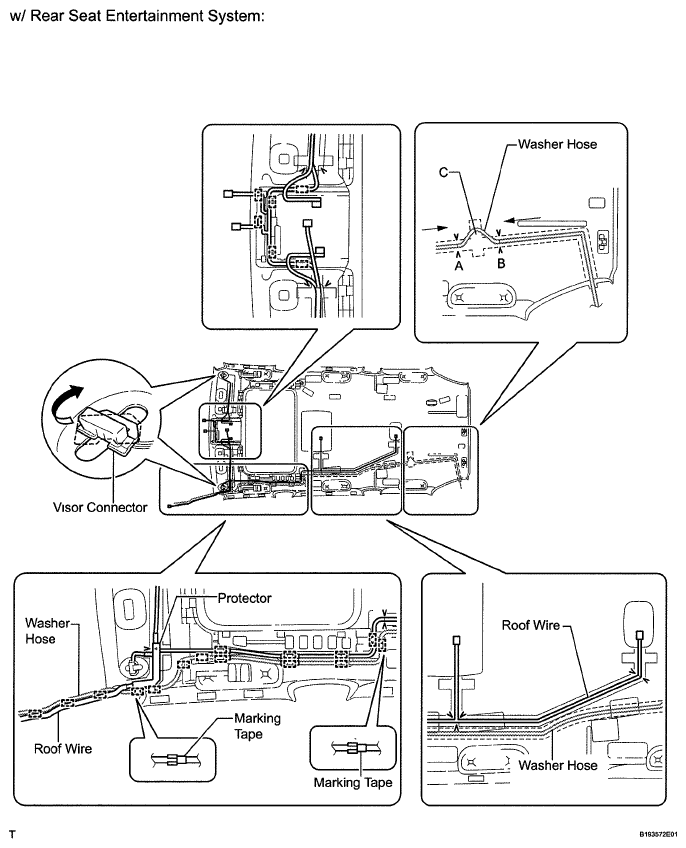

   Fig 5: Turning Visor Connectors Approximately 90° Clockwise (W/ Rear Seat Entertainment System)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Place tape at the wire harness marking and washer marking locations as shown in the illustration to fix the roof wire and washer hose in place.

   HINT:

   Apply sufficient pressure when placing tape.

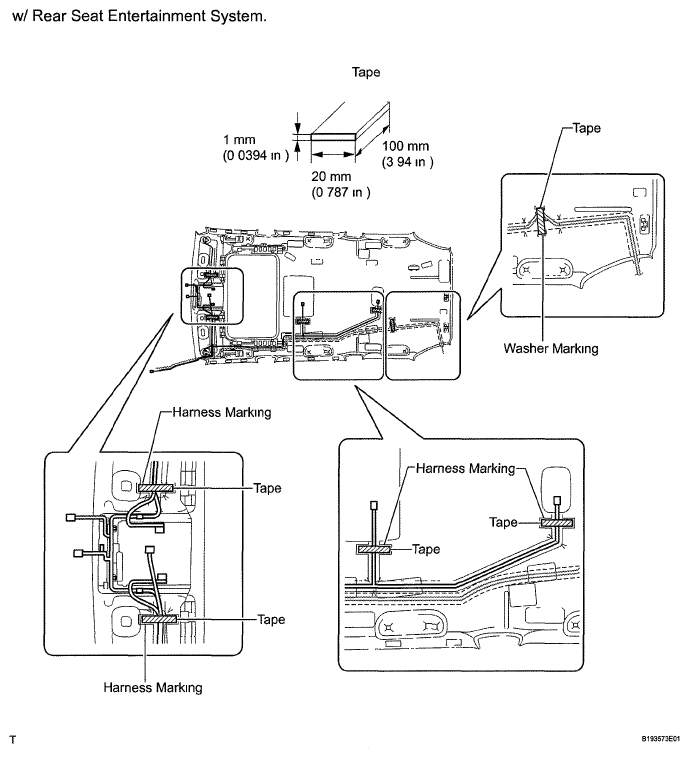

   Fig 6: Identifying Wire Harness Marking And Washer Marking Locations (W/ Rear Seat Entertainment System)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Align the silencer marking on the roof headlining with the roof silencer pad and install the pad using double-sided tape as shown in the illustration.

Fig 7: Aligning Silencer Marking On Roof Headlining With No. 4 Roof Silencer Pad

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Align the silencer marking on the roof headlining with the roof silencer pad and install the pad using double-sided tape as shown in the illustration.

Fig 8: Aligning Silencer Marking On Roof Headlining With No. 1 Roof Silencer Pad

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures to install the air outlet grille on the other side.

1. Attach the 6 claws to install the air outlet grille.

HINT:

Use the same procedures described for the No. 2 air outlet grille.

Fig 9: Identifying No. 2 Air Outlet Grille Claws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
