Roof Headlining: Disassembly

HINT:

Use the same procedures to remove the air outlet grille on the other side

1. Detach 6 claws and remove the air outlet grille.
Fig 1: Identifying No. 2 Air Outlet Grille Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures described for the No 2 air outlet grille

1. Remove the roof silencer pad.

Fig 2: Identifying No. 1 Roof Silencer Pad

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the roof silencer pad.
Fig 3: Identifying No. 4 Roof Silencer Pad
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. w/o Rear Seat Entertainment System:

   Remove the No. 1 roof wire.

   1. Turn the visor connectors approximately 90° clockwise and remove them from the roof headlining.
   2. Remove the 6 pieces of tape from the roof headlining.
   3. Detach each clamp, and remove the roof wire and washer hose.
   4. Remove the double-sided tape remaining on the headlining.

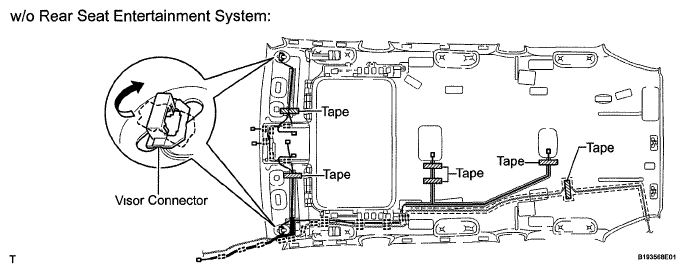

   Fig 4: Turning Visor Connectors Approximately 90° Clockwise (W/O Rear Seat Entertainment System)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/ Rear Seat Entertainment System:

   Remove the No. 1 roof wire.

   1. Turn the visor connectors approximately 90° clockwise and remove them from the roof headlining.
   2. Remove the 5 pieces of tape from the roof headlining.
   3. Detach each clamp, and remove the roof wire and washer hose.
   4. Remove the double-sided tape remaining on the headlining.

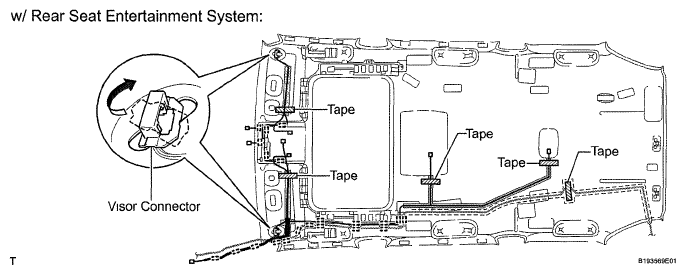

   Fig 5: Turning Visor Connectors Approximately 90° Clockwise (W/ Rear Seat Entertainment System)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
