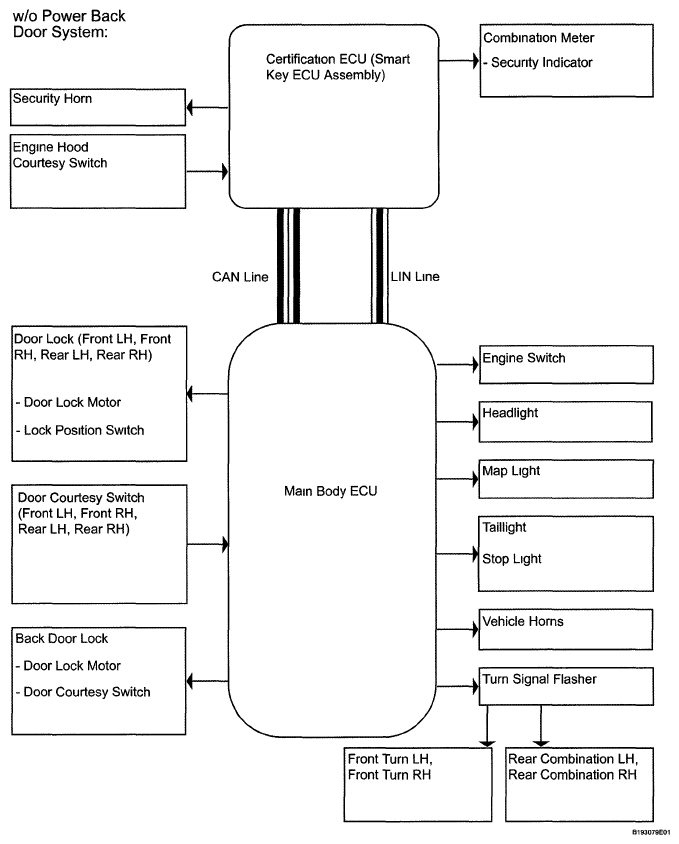

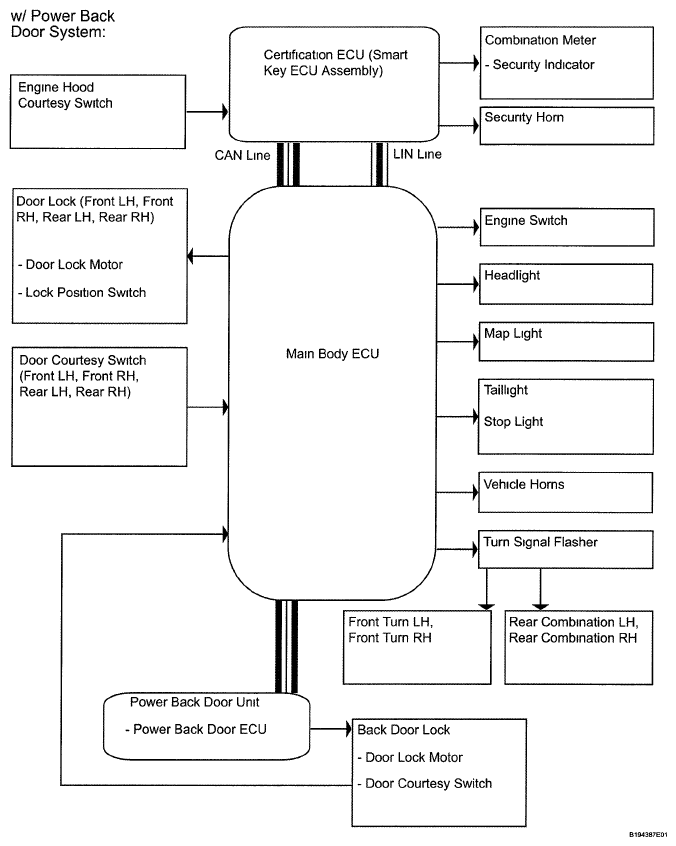

| Main Body ECU |
Certification ECU (Smart Key ECU Assembly) |
- Door courtesy light switch signal
- Engine switch status signal
- Driver door lock position signal
- Driver door key-linked lock switch signal
- Front passenger door lock position signal
- Front passenger door manual lock switch signal
- Rear door lock LH position signal
- Rear door lock RH position signal
- Back door courtesy switch signal
- Back door open signal
|
CAN |
| Main Body ECU |
Power Back Door ECU |
Back door lock status signal |
CAN |
| Certification ECU (Smart Key ECU Assembly) |
Main Body ECU |
- Driver door lock control signal
- Front passenger door lock control signal
- Rear door lock LH control signal
- Rear door lock RH control signal
- Back door lock control signal
- Horn signal
- Headlight flash signal
- Hazard warning light flash signal
- Taillight flash signal
- Map light and interior light illumination signal
|
CAN |
