Terminals Of Ecu

  1. CHECK MAIN BODY ECU (COWL SIDE JUNCTION BLOCK LH)

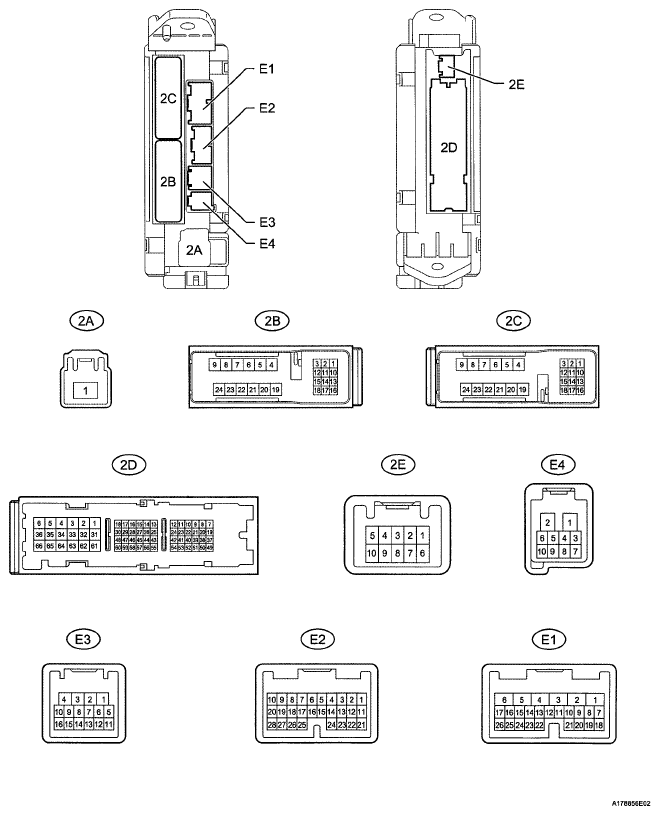

    Fig 1: Identifying Main Body ECU Connector Terminal (Cowl Side Junction Block LH)
    G05630957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E1, E2 and 2D main body ECU connectors.
    2. Measure the voltage and resistance according to the value(s) in the table below.
      CONNECTORS TERMINAL REFERENCE CHART

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      E1-6 (AM1) - Body ground W - Body ground +B power supply Always 11 to 14 V
      E2-1 (AM2) - Body ground W - Body ground +B power supply Always 11 to 14 V
      E1-17 (SSW1) - Body ground B - Body ground Engine switch 1 input Engine switch pushed Below 1 Ω
      E1-17 (SSW1) - Body ground B - Body ground Engine switch 1 input Engine switch not pushed 10 kΩ or higher
      E1-16 (SSW2) - Body ground B - Body ground Engine switch 2 input Engine switch pushed Below 1 Ω
      E1-16 (SSW2) - Body ground B - Body ground Engine switch 2 input Engine switch not pushed 10 kΩ or higher
      2D-62 (GND2) - Body ground W-B - Body ground Ground Always Below 1 Ω
      2D-20 (LIN1) - Body ground GR - Body ground LIN line Always 10 kΩ or higher

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the E1, E2 and 2D main body ECU connectors.
    4. Measure the voltage according to the value(s) in the table below.
      CONNECTORS TERMINAL REFERENCE CHART

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      E1-22 (ACCD) - 2D-62 (GND2) P - W-B ACC relay drive signal Engine switch on (ACC) 11 to 14 V
      E1-22 (ACCD) - 2D-62 (GND2) P - W-B ACC relay drive signal Engine switch off Below 1 V
      E1-3 (IG1D) - 2D-62 (GND2) G - W-B IG1 No 3 relay drive signal Engine switch on (IG) 11 to 14 V
      E1-3 (IG1D) - 2D-62 (GND2) G - W-B IG1 No 3 relay drive signal Engine switch on (ACC) Below 1 V
      E2-11 (IG2D) - 2D-62 (GND2) B - W-B Integration relay (IG2 relay) drive signal Engine switch on (IG) 11 to 14 V
      E2-11 (IG2D) - 2D-62 (GND2) B - W-B Integration relay (IG2 relay) drive signal Engine switch on (ACC) Below 1 V
      E1-19 (SLR+) - 2D-62 (GND2) G - W-B Steering lock power supply Steering lock motor operating Below 1 V
      E1-19 (SLR+) - 2D-62 (GND2) G - W-B Steering lock power supply Steering lock motor not operating 11 to 14 V
      E1-8 (STR) - 2D-62 (GND2) L - W-B Park/neutral position switch signal Engine switch on (IG), shift lever not in P or N → P or N Below 2 V → Pulse generation*1
      E1-18 (SLP) - 2D-62 (GND2) SB - W-B Steering lock actuator position signal Steering lock locked 11 to 14 V
      E1-18 (SLP) - 2D-62 (GND2) SB - W-B Steering lock actuator position signal Steering lock released Below 1 V
      E3-9 (SPD) - 2D-62 (GND2) V - W-B Speed signal from combination meter Engine switch on (IG), driving wheel rotating slowly Pulse generation (see  1waveform 1)
      E3-8 (TACH) - 2D-62 (GND2) W - W-B Tachometer signal Engine running Pulse generation (see  2waveform 2)
      E4-2 (P) - 2D-62 (GND2) L - W-B Shift lock signal Shift lever in P Pulse generation (see  3waveform 3)
      E4-2 (P) - 2D-62 (GND2) L - W-B Shift lock signal Shift lever not in P Below 1 V
      E4-4 (STSW) - 2D-62 (GND2) R - W-B Starter activation request signal Brake pedal depressed with shift lever in P, engine switch pushed once 11 to 14 V
      E1-15 (INDS) - 2D-62 (GND2) W - W-B Vehicle condition signal Brake pedal released with shift lever in P or N, engine switch off, on (ACC) or on (IG) 9 to 14 V
      E1-14 (INDW) - 2D-62 (GND2) W - W-B Vehicle condition signal Brake pedal released with shift lever in P or N, engine switch off, on (ACC) or on (IG) 9 to 14 V
      E1-25 (SWIL) - 2D-62 (GND2) R - W-B Illumination signal Light control switch tail or head 11 to 14 V
      2B-22 (STP) - 2D-62 (GND2) R - W-B Stop light switch signal Brake pedal depressed 11 to 14 V
      2B-22 (STP) - 2D-62 (GND2) R - W-B Stop light switch signal Brake pedal released Below 1 V
      HINT
      *1: Remove the ST CUT relay before measuring the voltage.

      If the result is not as specified, the ECU may have a malfunction

    5. Using an oscilloscope, check the signal waveform of the ECU.
      1. Waveform 1

        Reference

        WAVEFORM REFERENCE CHART

        Terminal No (Symbol) Tool Setting Condition
        E3-9 (SPD) - 2D-62 (GND2) 5V/DIV, 100 msec/DIV Vehicle driven at approx 20 km/h (12 mph)

        HINT.

        As the vehicle speed increases, the wavelength shortens.

        Fig 2: Identifying Waveform 1
        G05763760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Waveform 2

        Reference

        WAVEFORM REFERENCE CHART

        Terminal No. (Symbol) Tool Setting Condition
        E3-8 (TACH) - 2D-62 (GND2) 10 V/DIV, 10 msec/DIV Engine switch on (IG) or engine started

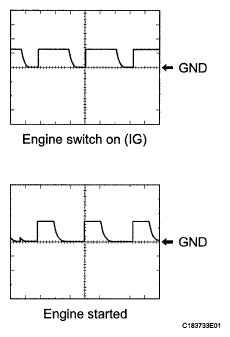

        Fig 3: Identifying Waveform 2
        G05763761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Waveform 3

        Reference

        WAVEFORM REFERENCE CHART

        Terminal No. (Symbol) Tool Setting Condition
        E4-2 (P) - 2D-62 (GND2) 2 V/DIV, 20 msec /DIV Shift lever in P
  2. CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
    Fig 4: Identifying Waveform 3
    G05763762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

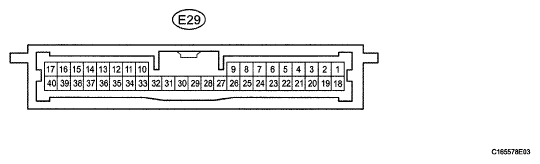

    Fig 5: Identifying ECU Connector Terminal E29
    G05763763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E29 certification ECU (smart key ECU assembly) connector.
    2. Measure the voltage and resistance according to the value(s) in the table below.
      CONNECTORS TERMINAL REFERENCE CHART

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      E29-1 (+B) - Body ground B - Body ground +B power supply Always 11 to 14 V
      E29-10 (LIN) - Body ground GR - Body ground LIN line Always 10 kΩ or higher
      E29-17 (E) - Body ground W-B - Body ground Ground Always Below 1 Ω

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the E29 certification ECU (smart key ECU assembly) connector.
    4. Measure the voltage according to the value(s) in the table below.
      CONNECTORS TERMINAL REFERENCE CHART

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      E29-18 (IG) - Body ground B - Body ground Ignition power supply Engine switch on (IG) 11 to 14 V
      E29-18 (IG) - Body ground B - Body ground Ignition power supply Engine switch off Below 1 V

      If the result is not as specified, the certification ECU (smart key ECU assembly) may have a malfunction.

  3. CHECK ECM

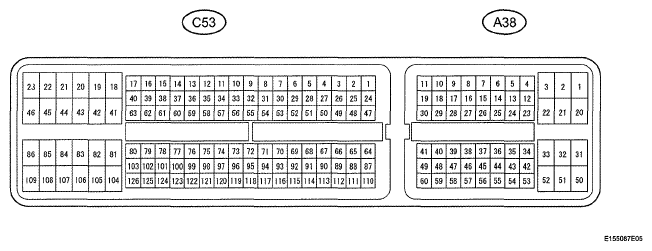

    Fig 6: Identifying ECM Connector Terminal C53 And A38
    G05763764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A38 and C53 ECM connectors.
    2. Measure the voltage and resistance according to the value(s) in the table below.
      CONNECTORS TERMINAL REFERENCE CHART

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A38-1 (BATT) - C53-81 (E1) L - W-B Battery (for measuring battery voltage and for ECM memory) Always 11 to 14 V
      A38-3 (+B) - C53-81 (E1) B - W-B Power source of ECM Engine switch on (IG) 11 to 14 V
      A38-28 (IGSW) - C53-81 (E1) B - W-B Engine switch signal Always 11 to 14 V
      C53-81 (E1) - Body ground W-B - Body ground Ground Always Below 1 Ω
      C53-43 (E01) - Body ground W-B - Body ground Ground Always Below 1 Ω
      C53-42 (E02) - Body ground BR - Body ground Ground Always Below 1 Ω
      C53-46 (E03) - Body ground W-B - Body ground Ground Always Below 1 Ω
      C53-23 (E04) - Body ground W-B - Body ground Ground Always Below 1 Ω
      C53-21 (E05) - Body ground W-B - Body ground Ground Always Below 1 Ω

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the ECM connectors.
    4. Measure the voltage according to the value(s) in the table below.
      CONNECTORS TERMINAL REFERENCE CHART

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A38-46 (STA) - C53-81 (E1) R-B - W-B ST relay operation signal Cranking 5 5 V or higher
      A38-14 (STSW) - C53-81 (E1) R - W-B Starter activation request signal Brake pedal depressed, engine switch on (IG) Output voltage at terminal AM1 or AM2 is -2 V or higher
      A38-41 (ACCR) - C53-81 (E1) L-Y - W-B ACC relay cut signal (output) Engine switch on (IG) → Cranking 11 to 14 V → Below 1 V
      A38-15 (TACH) - C53-81 (E1) W-G - W-B Engine speed signal (output) Idling Pulse generation (see  ewaveform 1)
      C53-16 (STAR) - C53-81 (E1) L - W-B ST relay drive signal Cranking 11 to 14 V

      If the result is not as specified, the ECM may have a malfunction.

    5. Using an oscilloscope, check the signal waveform of the ECM.

      Reference

      WAVEFORM REFERENCE CHART

      Terminal No. (Symbol) Tool Setting Condition
      A38-15 (TACH) - C53-81 (E1) 5 V/DIV, 10 ms/DIV Engine idling

      HINT:

      As the engine speed increases, the wavelength shortens.

  4. CHECK STEERING LOCK ECU
    Fig 7: Identifying Signal Waveform
    G05763765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

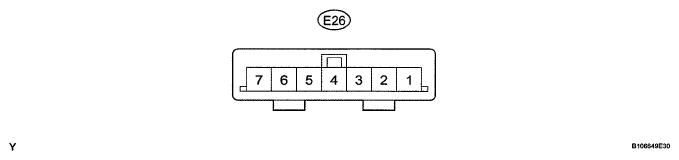

    Fig 8: Identifying Steering Lock ECU Connector Terminal E26
    G05763766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E26 steering lock ECU connector.
    2. Measure the voltage and resistance according to the value(s) in the table below.
      CONNECTORS TERMINAL REFERENCE CHART

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      E26-7 (B) - Body ground R - Body ground +B power supply Always 11 to 14 V
      E26-6 (IG2) - Body ground B - Body ground Ignition power supply Engine switch on (IG) 11 to 14 V
      E26-6 (IG2) - Body ground B - Body ground Ignition power supply Engine switch off Below 1 V
      E26-1 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω
      E26-2 (SGND) - Body ground BR - Body ground Ground Always Below 1 Ω

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the E26 steering lock ECU connector.
    4. Measure the voltage according to the value(s) in the table below.
      CONNECTORS TERMINAL REFERENCE CHART

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      E26-4 (SLP1) - E26-1 (GND) SB - W-B Steering lock actuator position signal Steering locked 11 to 14 V
      E26-4 (SLP1) - E26-1 (GND) SB - W-B Steering lock actuator position signal Steering released Below 1 V

      If the result is not as specified, the ECU may have a malfunction.
