Inspection Procedure

1. When the door control switch of the master switch assembly is operated, check that the locked doors unlock.

   OK: Door locks operate normally.

NG: GO TO POWER DOOR LOCK CONTROL SYSTEM  (See PROBLEM SYMPTOMS TABLE )

OK: Go to next step

1. Check if the power back door is equipped on the vehicle.

   Result

   RESULT CHART



   Result	Proceed to
   w/ Power Back Door System	A
   w/o Power Back Door System	B

B:  Go to step  4

A: Go to next step

1. When the power back door switch is operated, check that the power back door open and close.

   OK: Power back door is open and close.

NG: GO TO POWER BACK DOOR SYSTEM  (See INITIALIZATION )

OK: Go to next step

1. Using the Techstream, read the Data List.

   Main Body

   DIAGNOSTIC NOTE NORMAL CONDITION CHART



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Back Door Handle SW	Back door opener switch / ON or OFF	ON: Back door opener switch pushed OFF: Back door opener switch not pushed	-

   Smart Access

   DIAGNOSTIC NOTE NORMAL CONDITION CHART



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Tr/B-Door Lock SW	Back door lock switch / ON or OFF	ON: Back door lock switch pushed OFF: Back door lock switch not pushed	-

   OK: "ON" (switch is pushed) and "OFF" (switch is not pushed) appears on the screen.

NG:  Go to step  8

OK: Go to next step

1. Disconnect the E29 ECU connector.
2. Disconnect the K23 antenna connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Condition	Specified Condition
   E29-31 (CLG8) - K23-1 (CLG5)	Always	Below 1 Ω
   E29-32 (CG8B) - K23-2 (CLGB)	Always	Below 1 Ω
   E29-31 (CLG8) - Body ground	Always	10 kΩ or higher
   E29-32 (CG8B) - Body ground	Always	10 kΩ or higher

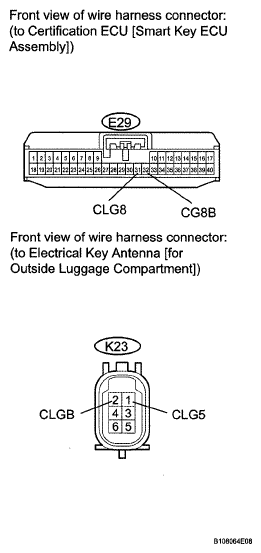

   Fig 1: Identifying E29 ECU Connector And K23 Antenna Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the electrical key antenna (for outside luggage compartment) (See REMOVAL  )

1. Check that the entry functions operate normally

   OK: Entry functions operate normally.

NG: REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

OK: END (ELECTRICAL KEY ANTENNA [for Outside Luggage Compartment] IS DEFECTIVE)

1. Disconnect the S7 switch connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Condition	Specified Condition
   S7-2 (L) - Body ground	Always	Below 1 Ω

   Fig 2: Identifying S7 Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE BACK DOOR OPENER SWITCH  (See BACK DOOR OPENER SWITCH )
