Id Code Box: Removal

  1. REMOVE AIR CONDITIONING UNIT
    1. Remove the air conditioning unit (See REMOVAL ).
  2. REMOVE ID CODE BOX (IMMOBILIZER CODE ECU)
    1. Disconnect the connector and detach the clamp.
    2. Remove the screw and ID code box (immobilizer code ECU).

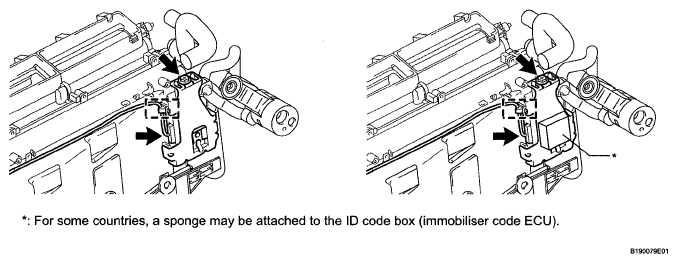

      Fig 1: Locating ID Code Box Screw
      G05631138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
