Engine Hood Courtesy Switch: Inspection

INSPECT HOOD LOCK ASSEMBLY (ENGINE HOOD COURTESY SWITCH)

Fig 1: Identifying Hood Lock Control Cable

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

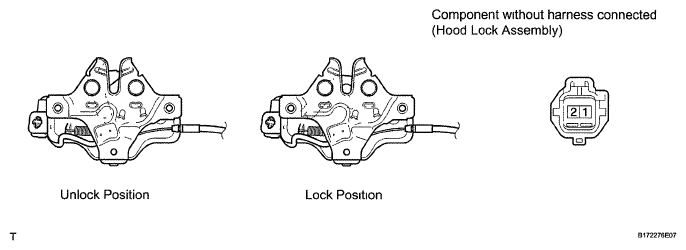

Fig 2: Identifying Hood Lock Assembly Positions With Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard Resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
1 - 2	Unlock	Below 1 Ω
1 - 2	Lock	10 kΩ or higher

If the result is not as specified, replace the hood lock assembly.
